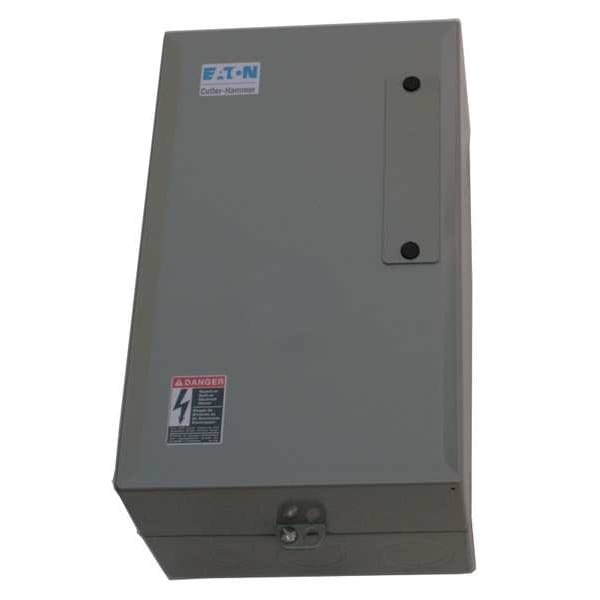

Definite Purpose Contactor, 480V AC, 3 P, Non-Reversing, 3 Phase, Quick Connect

  • Mfr # C25DGD330C

  • Zoro # G1394416

product price:  $294.99
/ea
Free Shipping & Returns

Key Features

Coil Voltage
480V AC
Series
C25
Number of Poles
3
Reversing Capability
Non-Reversing
Full Load Current - Resistive
40 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C25DGD330C
Zoro #
G1394416
UPC #
782113382876
Country of Origin
United States

Dimensions

Depth
3.5 in
Width
4.1 in
Height
6.75 in
Frame Size
D
Overall Depth
3.5 in
Mounting Hole Distance - Height
3.25 in
Mounting Hole Distance - Width
2 in
Overall Height
6.75 in
Overall Width
4.1 in

Details

Item
Definite Purpose Contactor
Coil Voltage
480V AC
Series
C25
Number of Poles
3
Reversing Capability
Non-Reversing
Full Load Current - Resistive
40 A
Full Load Current - Inductive
30 A
Phase
3
Terminal Connection Type
Quick Connect
HP @ 3 Phase - 575V
15 hp
Includes
Quick Connect Pressure Plate Terminal
HP @ 3 Phase - 230V
10
HP @ 1 Phase - 230V
5
Standards
CSA, RoHS, UL Listed
Enclosure Type
NEMA 1
Action
Non-Reversing
Reversing
No
Enclosure NEMA Rating
1
Weight
2.7 lb
Enclosure
NEMA type 1 enclosed
Model
Contactor
Certifications
UL Recognized;CSA Certified
Product Name
Eaton definite purpose contactor
Connection
Quick
Coil
440-480 Vac, 50/60 Hz
Amperage Rating
30A
Input Control Type
2-Wire
Horsepower @ Three Phase - 240V AC
10 hp
Mounting Postion
Horizontal, Vertical
Horsepower @ Single Phase - 240V AC
5 hp
Horsepower @ Three Phase - 600V AC
15 hp
Horsepower @ Three Phase - 480V AC
15 hp
Auxiliary Contact Module Capacity
4
LED Lighting Current Rating
40 A
Minimum Operating Temperature
-13 Degrees F
Horsepower @ Single Phase - 120V AC
2 hp
Locked Rotor Load
180 A @ 230V
NEMA Enclosure Rating
1
Maximum Voltage Rating
690V AC
Frequency
50/60 Hz
Horsepower @ Three Phase - 208V AC
10 hp
Maximum Operating Temperature
158 Degrees F
Contactor Style
HVACR Definite Purpose Contactor

Description

Definite Purpose Contactor, LED Lighting Current Rating 40 A, Coil Voltage 480V AC, Series C25 Series, Number of Poles 3, NEMA Enclosure Rating 1, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size D, Horsepower @ Single Phase - 240V AC 5 hp, Horsepower @ Single Phase - 120V AC 2 hp, Full Load Current - Resistive 40 A, Full Load Current - Inductive 30 A, Maximum Voltage Rating 690V AC
