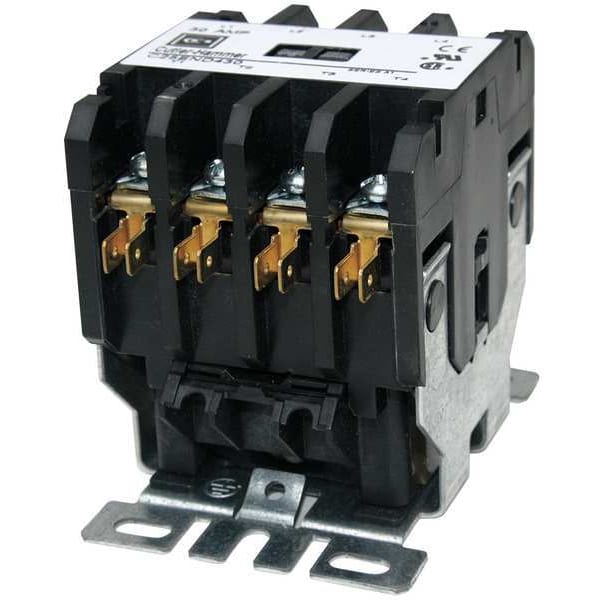

Definite Purpose Magnetic Contactor, 120V AC, 4 P, Non-Reversing, 3 Phase, Quick Connect

  • Mfr # C25END430A

  • Zoro # G5241747

product price:  $96.59
/ea

Key Features

Coil Voltage
120V AC
Series
C25
Number of Poles
4
Reversing Capability
Non-Reversing
Full Load Current - Resistive
40 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C25END430A
Zoro #
G5241747
UPC #
782113542331
Country of Origin
Dominican Republic

Dimensions

Depth
3.75 in
Width
2.68 in
Height
3.75 in
Overall Width
2.68 in
Overall Depth
3.38 in
Frame Size
E
Overall Height
3.75 in
Mounting Hole Distance - Width
2 in
Mounting Hole Distance - Height
3.25 in

Details

Item
Definite Purpose Magnetic Contactor
Coil Voltage
120V AC
Series
C25
Number of Poles
4
Reversing Capability
Non-Reversing
Full Load Current - Resistive
40 A
Full Load Current - Inductive
30 A
Phase
3
Terminal Connection Type
Quick Connect
Standards
CSA, UL Listed
Includes
Mounting Plate
Action
Non-Reversing
Reversing
No
Enclosure Type
Open
HP @ 3 Phase - 230V
10
HP @ 3 Phase - 575V
15 hp
HP @ 1 Phase - 230V
5
Enclosure NEMA Rating
No Enclosure
Weight
2.3 lb
Horsepower @ Three Phase - 480V AC
15 hp
Input Control Type
2-Wire
Maximum Operating Temperature
158 Degrees F
LED Lighting Current Rating
40 A
Horsepower @ Three Phase - 240V AC
10 hp
Horsepower @ Single Phase - 240V AC
5 hp
Frequency
50/60 Hz
Minimum Operating Temperature
-13 Degrees F
Mounting Postion
Horizontal, Vertical
Horsepower @ Three Phase - 208V AC
10 hp
Auxiliary Contact Module Capacity
4
Maximum Voltage Rating
690V AC
NEMA Enclosure Rating
No Enclosure
Locked Rotor Load
120 A @ 575V, 150 A @ 460V
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Three Phase - 600V AC
15 hp
Contactor Style
HVACR Definite Purpose Contactor

Description

The EATON - C25END430A is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

  • Action: Non-Reversing mode keeps current flow direction constant.
  • Auxiliary Contact Module Capacity: Can control up to 4 additional secondary circuits providing flexibility in managing multiple electrical loads or signals.
  • Coil Voltage: Requires 120V AC for effective engagement or disengagement of its electrical circuit.
  • Depth: Extends 3.75 inches into mounting surface or enclosure.
  • Frequency: Rated for operation within the specified frequency range of 50/60 Hz.
  • Full Load Amps-Inductive & Resistive: Rated for continuous operation at up to 30 A for inductive loads and up to 40 A for resistive loads. Exceeding these limits may result in overheating or damage
  • Horsepower @ Single Phase & Three Phase : Compatible with a range of motor sizes, from those requiring as little as a single-phase, two-horsepower supply, up to those needing a three-phase, fifteen-horsepower supply. Compatibility outside this range is not guaranteed
  • Input Control Type: Uses a two-wire system for activation and control
