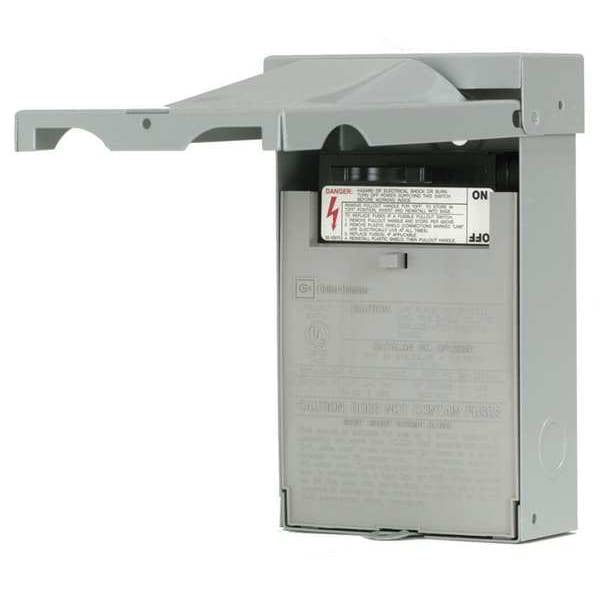

Eaton Disconnect Switch, Fusible, DPST, Single Phase, NEMA 3R, Indoor/Outdoor, Polycarbonate ACD222RNM-A2 - main

Disconnect Switch, Fusible, DPST, Single Phase, NEMA 3R, Indoor/Outdoor, Polycarbonate

  • Mfr # ACD222RNM-A2

  • Zoro # G2343966

product price:  $38.29
/ea

Key Features

Protection Method
Fusible
Contact Form
DPST
Current Rating
60 A
Phase
Single
For Fuse Class
Class H
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ACD222RNM-A2
Zoro #
G2343966
UPC #
786685426372
Country of Origin
United States

Dimensions

Height
8 3/4 in
Width
3 1/2 in
Depth
5 in
Wire Size
2 AWG, 3 AWG, 4 AWG, 5 AWG, 6 AWG, 7 AWG, 8 AWG, 9 AWG, 10 AWG, 11 AWG, 12 AWG, 13 AWG, 14 AWG

Details

Item
Disconnect Switch
Protection Method
Fusible
Contact Form
DPST
Current Rating
60 A
Phase
Single
For Fuse Class
Class H
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3R
HP
10 HP @ 240 V
Voltage
240 V
Housing Material
Polycarbonate
Standards
CSA Certified, UL Listed
For Use With
RK1 Class Fuse
Number of Poles
2
Metallic / Non-Metallic
Non-Metallic
Duty
General
Fusible / Nonfusible
Fusible
Short Circuit Protection
Fuse
Max. HP @ 240V
10 hp
IP Rating
IP14
Includes
20A GFI Receptacle
Number of Wires
2
Amps
60 A
Features
1in Knockouts On Bottom, Back, and Side, Wiring Space for Mounting with a Stud Gun (Single Keyhole, Two or Three Point Mounting), Copper-Rated Line and Load Lugs, Protective Shield, Service Entrance Rated
Horsepower @ 240V AC
10 hp
For Environment
Indoor/Outdoor
Switch Design
Pull-out

Description

Air Conditioning Disconnect Switch, Contact Form DPST, Current Rating 60 A, Depth 5 in, Features 1in Knockouts On Bottom, Back, and Side, Wiring Space for Mounting with a Stud Gun (Single Keyhole, Two or Three Point Mounting), Copper-Rated Line and Load Lugs, Protective Shield, Service Entrance Rated, For Fuse Class Class H, Height 8 3/4 in, Horsepower @ 120V AC 3 hp, Horsepower @ 240V AC 10 hp, Housing Material Polycarbonate, Includes 20A GFI Receptacle, IP Rating IP14, NEMA Enclosure Rating 3R
