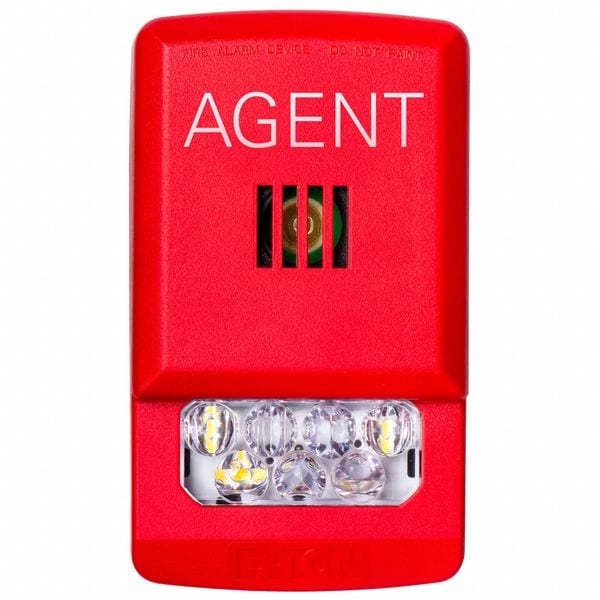

Eaton ELUXA HORN STROBE ELHSR-A - main

ELUXA HORN STROBE

  • Mfr # ELHSR-A

  • Zoro # G805987688

product price: $102.99
/ea
Free Shipping & Returns

Key Features

Standards
FCC, RoHS, UL Listed, ULC
Mounting
Wall
Indoor/Outdoor
Indoor
Voltage
24V
Includes
Mounting Plate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ELHSR-A
Zoro #
G805987688
UPC #
786697010118
Country of Origin
Romania

Dimensions

Height
1.57 in
Width
2.76 in
Depth
4.79 in
Overall Length
4 25/32 in
Overall Depth
4 25/32 in
Overall Width
2 3/4 in

Details

Item
Horn Strobe
Standards
FCC, RoHS, UL Listed, ULC
Mounting
Wall
Indoor/Outdoor
Indoor
Voltage
24V
Includes
Mounting Plate
Color
Red
Features
Continuous T3 and T3/T4, Energy Efficient, Fire and CO signaling in 1 device, Low-Profile Design
Lens Material
Lexan
Decibels
86 dBA
Light Output
185 cd
Current Drawn
0.022 DC, 0.03 DC, 0.06 DC, 0.086 DC, 0.125 DC, 0.185 DC
Housing Color
Red
Audible Alarm Type
Horn
Visual Indicator Type
Strobe
Lamp Life
100,000 hr
Operating Temp.
32 Degrees to 122 Degrees F
Watts
5 W
Housing Material
Plastic
Lamp Type
LED
Power Source
Wire
Lens Color
Clear
Lens Design
LED
Sound Pattern
Continuous/Pulse
Product Type
Horn and Strobe
Sound Continuity
Continuous
Light Source
LED
Light Intensity
15 cd, 30 cd, 75 cd, 110 cd, 135 cd, 185 cd
Lifespan
100,000 hr
Number of Sound Patterns
2
Light Operating Mode
Strobe
Operating Current
0.022 A @ DC, 0.030 A @ DC, 0.060 A @ DC, 0.086 A @ DC, 0.125 A @ DC, 0.185 A @ DC
Legend
Agent
For Location
Indoor
Operating Temperature - Minimum
32 Degrees F
Operating Temperature - Maximum
122 Degrees F
Control Protocol
Direct Wire
Mounting Style
Surface Mount
Wattage
5 W
Alarm Volume @ 10 ft - Maximum
86 dBA
Sound Style
Horn
Brightness Selection
Selectable Brightness
Operating Voltage
24V

Description

ELUXA HORN STROBE
