  15. Emergency Stop Push Button, Red

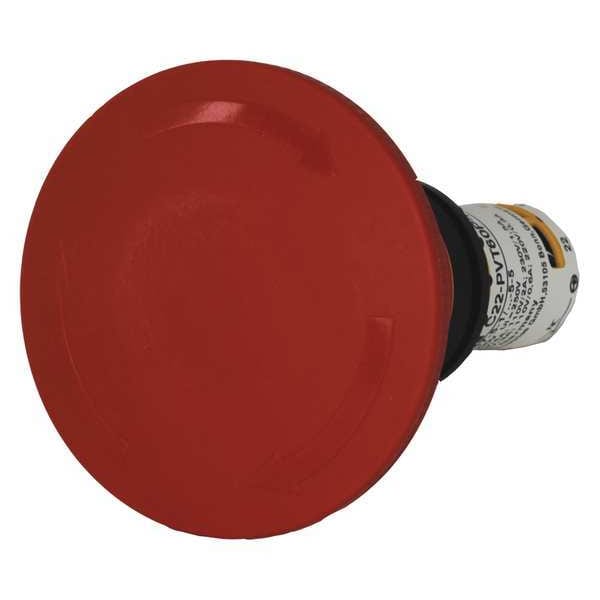

Eaton Emergency Stop Push Button, Red C22-PVT60P-K02 - main

Emergency Stop Push Button, Red

  • Mfr # C22-PVT60P-K02

  • Zoro # G7513816

product price: $78.19
/ea
Free Shipping & Returns

Key Features

Material
Plastic
Color
Red
Legend
No Legend
Terminal Connection
Screw Clamp
Size
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C22-PVT60P-K02
Zoro #
G7513816
UPC #
786685897318
Country of Origin
Germany

Dimensions

Size
22 mm
Product Height
3.62 IN
Product Width
2.36 IN
Product Length/Depth
2.36 IN
Overall Height
3.62 in
Mushroom Head Diameter
40 mm
Overall Depth
2.36 in
Overall Width
2.36 in
Panel Cutout Diameter
22 mm
Manufacturer Warranty Length
1 yr

Details

Item
Emergency Stop Push Button
Material
Plastic
Color
Red
Legend
No Legend
Terminal Connection
Screw Clamp
Standards
CSA, DIN VDE 0600, EN 60947, IEC-60947, UL Listed
NEMA Contact Rating Designation
AC-15, DC-13
Number of Operators
1
Bezel
Silver Nylon
Contact Rating
1.5A @ 230V AC, 3A @ 24V DC
Head Material
Plastic
Action
Maintained
Type of Operator
60mm Mushroom Head
NEMA Rating
1, 12, 13, 3, 4X
IP Rating
IP67, IP69K
Basic Material
Plastic
Contact Form
2NC
Features
Completely Sealed
Product Type
Push Button Operators
Type
Emergency Stop
Bezel Material
Nylon
Certifications
UL Listed
Contact configuration
2NC
Button color
Red
Series
C22
Compliances
DIN VDE 0600
Actuator
60 mm Twist-release button
Illumination
Non-Illuminated
Actuator Function
Maintained
Product Name
Eaton C22 compact pushbutton
Operator Material
Plastic
Number of Indicator Lights
0
Push Button Style
Mushroom Head
Resistance Properties
Corrosion Resistant
AC Contact Rating
1.5 A @ 230 V
Operator Voltage Rating - Maximum
230 V AC
DC Contact Rating
3 A @ 24 V
NEMA Enclosure Rating
1, 12, 13, 3, 4X
Head Color
Red
Operating Temperature - Maximum
158 Degrees F
Mechanical Operating Durability
1.00 x 10^6
Operator Illumination
Non-Illuminated
Operating Temperature - Minimum
-13 Degrees F
Maintained Action Release
Twist

Description

Emergency Stop Push Button, 22 mm, Maintained Action, 60mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 2NC, Bezel Silver Nylon, Color Red, Contact Rating 1.5A @ 230V AC, 3A @ 24V DC, NEMA Contact Rating Designation AC-15, DC-13, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 4X, IP Rating IP67, IP69K, Legend No Legend, Standards CSA, DIN VDE 0600, EN 60947, IEC-60947, UL Listed, Terminal Connection Screw Clamp, Features Completely Sealed, Material Plastic
