  15. Emergency Stop Push Button, Red

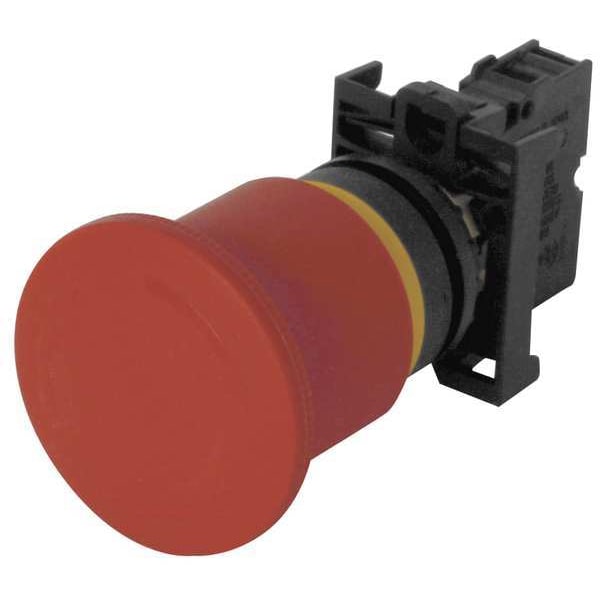

Eaton Emergency Stop Push Button, Red M22-PVT-K01 - main

Emergency Stop Push Button, Red

  • Mfr # M22-PVT-K01

  • Zoro # G7575775

product price: $72.29
/ea

Key Features

Material
Plastic
Color
Red
Number of Operators
1
Legend
No Legend
Action
Maintained
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22-PVT-K01
Zoro #
G7575775
UPC #
786685900407
Country of Origin
Germany

Dimensions

Size
22 mm
Product Height
1 in
Product Width
2 in
Product Length/Depth
2 in
Manufacturer Warranty Length
1 yr
Overall Depth
2.77 in
Mushroom Head Diameter
40 mm
Overall Height
1 in
Panel Cutout Diameter
22 mm
Overall Width
1 in

Details

Item
Emergency Stop Push Button
Material
Plastic
Color
Red
Number of Operators
1
Legend
No Legend
Action
Maintained
Type of Operator
45mm Mushroom Head
Contact Rating
3A @ 24 DC, 6A @ 230V AC
Basic Material
Plastic
Features
Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter
NEMA Rating
1, 13, 2, 3, 4, 4X
NEMA Contact Rating Designation
AC-15, DC-13
Contact Form
1NC
Terminal Connection
Screw Clamp
Head Material
Plastic
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
IP Rating
IP67, IP69K
Bezel
Polycarbonate
Product Type
Emergency Stop Push Buttons
Bezel Material
Nylon
Type
Emergency Stop
Actuator function
Maintained
Environmental rating
IP67, IP69K, NEMA 4X, NEMA 13
Actuator
Knob, twist-to-release
Compliances
CE Marked
Series
M22
Illumination
Non-illuminated
Certifications
CCC Marked
Contact configuration
1 NC
Button color
Red
Product Name
Eaton M22 modular pushbutton
DC Contact Rating
5 A @ 250 V
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Number of Indicator Lights
0
Resistance Properties
Corrosion Resistant
Operator Material
Plastic
AC Contact Rating
6 A @ 230 V
Head Color
Red
Operating Temperature - Maximum
158 Degrees F
Mechanical Operating Durability
1.00 x 10^6
Operating Temperature - Minimum
-13 Degrees F
Operator Illumination
Non-Illuminated
Maintained Action Release
Twist
Push Button Style
Mushroom Head

Description

Emergency Stop Push Button, 22 mm, Maintained Action, 45mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NC, Bezel Polycarbonate, Color Red, Contact Rating 3A @ 24 DC, 6A @ 230V AC, NEMA Contact Rating Designation AC-15, DC-13, Number of Operators 1, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP67, IP69K, Legend No Legend, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Terminal Connection Screw Clamp
