  15. ExtendedPushButton, Green, Non-Illum, 22mm

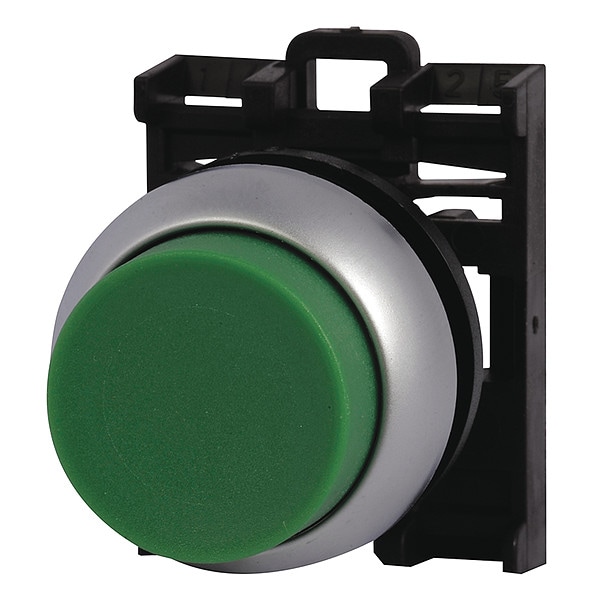

Eaton ExtendedPushButton, Green, Non-Illum, 22mm M22-DH-G - main

ExtendedPushButton, Green, Non-Illum, 22mm

  • Mfr # M22-DH-G

  • Zoro # G3633389

product price: $12.99
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22-DH-G
Zoro #
G3633389
UPC #
786685275987
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22.5 mm
Product Width
2 in
Product Height
1.5 in
Product Length/Depth
4 in
Manufacturer Warranty Length
1 yr
Overall Width
1 in
Overall Depth
2.26 in
Overall Height
1 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
IP Rating
IP67, IP69K
Series
M22
Bezel
Silver
Bezel Material
Silver
Number of Operators
1
Type
Pushbutton
Product Type
Push Button Operators
Actuator function
Momentary
Button color
Black
Illumination
Non-illuminated
Certifications
CCC Marked
Operating cycles
5 million
Actuator
Extended, button
Environmental rating
IP67, IP69K, NEMA 4X, NEMA 13
Compliances
Bureau Veritas
Product Name
Eaton M22 modular pushbutton
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Corrosion Resistant
Operating Temperature - Minimum
-13 Degrees F
Number of Indicator Lights
0
Hazardous Location Specification
Not Rated
Operator Material
Polycarbonate
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Extended Push Button, Momentary, Head Material Plastic, Bezel Material Silver, IP Rating IP67, IP69K, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
