  15. ExtendedPushButton, White, Non-Illum, 22mm

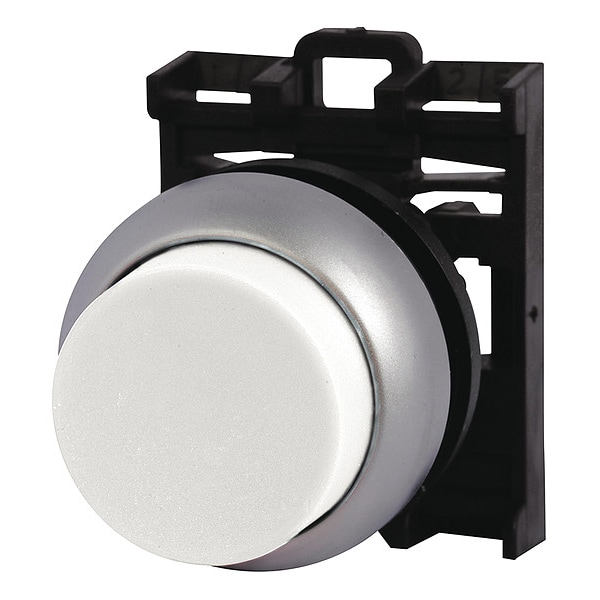

Eaton ExtendedPushButton, White, Non-Illum, 22mm M22-DH-W - main

ExtendedPushButton, White, Non-Illum, 22mm

  • Mfr # M22-DH-W

  • Zoro # G3632302

product price: $10.49
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22-DH-W
Zoro #
G3632302
UPC #
786685275949
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22.5 mm
Product Width
2 in
Product Height
1 in
Product Length/Depth
2 in
Manufacturer Warranty Length
1 yr
Overall Width
1 in
Overall Depth
2.26 in
Overall Height
1 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
White
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Bezel
Silver
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Number of Operators
1
IP Rating
IP67, IP69K
Type
Pushbutton
Bezel Material
Silver
Series
M22
Product Type
Push Button Operators
Actuator Color
Red
Operating mode
Momentary
Actuator function
Momentary
Illumination
Non-illuminated
Button color
Red
Certifications
CCC Marked
Mounting method
Flush
Operating cycles
5 million
Compliances
CE Marked
Degree of protection
NEMA 4X
Actuator
Flush, button
Environmental rating
IP67, IP69K, NEMA 4X, NEMA 13
Product Name
Eaton M22 modular pushbutton
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Material
Polycarbonate
Operating Temperature - Maximum
158 Degrees F
Number of Indicator Lights
0
Resistance Properties
Corrosion Resistant
Hazardous Location Specification
Not Rated
Operating Temperature - Minimum
-13 Degrees F

Description

Extended Push Button, Momentary, Head Material Plastic, Bezel Material Silver, IP Rating IP67, IP69K, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
