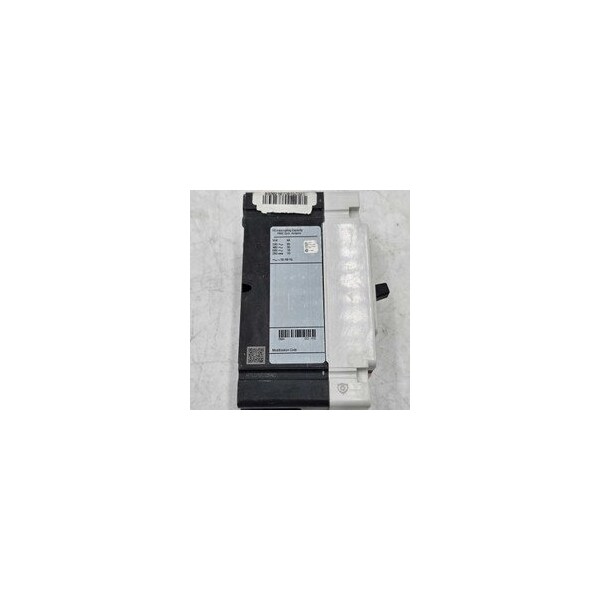

FD 2-Pole 80A Molded Case Circuit Breaker
Mfr # FD2080L
Zoro # G322798132
product price:Â
$
520.99
/ea
Free Shipping & Returns
Key Features
DC Voltage Rating
250V DC
Trip Type
Fixed Thermal Magnetic
Number of Poles
2
Frame Size
2.75 Inch Width x 3.38 Inch Depth x 6 Inch Height; FD
Interrupt Rating
65 kA at 240 VAC, 35 kA at 480 VDC, 18 kA at 600 VAC, 10 kA at 250 VDC (UL), 65 kA at 220/240 VAC, 35 kA at 380/415/440 VDC, 18 kA at 500 VAC, 10 kA at 250 VDC (IEC)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- FD2080L
- Zoro #
- G322798132
- UPC #
- 78667931280
- Country of Origin
- Dominican Republic
Dimensions
- Frame Size
- 2.75 Inch Width x 3.38 Inch Depth x 6 Inch Height; FD
Details
- DC Voltage Rating
- 250V DC
- Trip Type
- Fixed Thermal Magnetic
- Number of Poles
- 2
- Interrupt Rating
- 65 kA at 240 VAC, 35 kA at 480 VDC, 18 kA at 600 VAC, 10 kA at 250 VDC (UL), 65 kA at 220/240 VAC, 35 kA at 380/415/440 VDC, 18 kA at 500 VAC, 10 kA at 250 VDC (IEC)
- AC Voltage Rating
- 600 V
- Terminal Connection
- Line and Load
- Circuit Breaker Type
- Molded Case
- Amps
- 80 A
- Standards
- UL 489, CSA C22.2
Description
EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER, F-FRAME, FD, COMPLETE BREAKER, FIXED THERMAL, FIXED MAGNETIC TRIP TYPE, TWO-POLE, 80A, 600 VAC, 250 VDC, 65 kAIC AT 240 VAC, 35 kAIC AT 480 VAC, LINE AND LOAD, 50/60 HZ
