Shop EATON

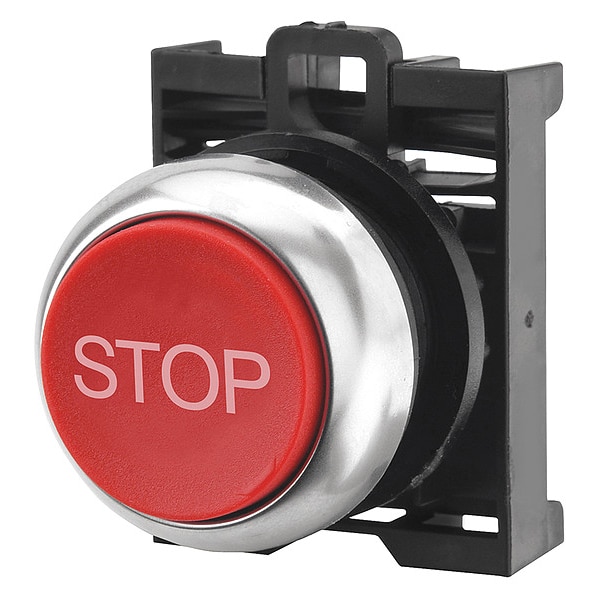

Flush Push Button, Red, Non-Illum, 22mm

  • Mfr # M22-D-R-GB0
  • Zoro # G3633319

product price:
$
12.15
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Red
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
M22-D-R-GB0
Zoro #
G3633319
UPC #
786685276106
Country of Origin
Germany
Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Number of Operators
1
Type
Pushbutton
IP Rating
IP67, IP69K
Bezel Material
Silver
Bezel
Silver
Series
M22
Product Type
Push Button Operators
Actuator function
Maintained
Button color
Black
Compliances
CE Marked
Illumination
Non-illuminated
Environmental rating
IP67, IP69K, NEMA 4X, NEMA 13
Operating cycles
1 million
Actuator
Extended, button
Certifications
CSA Certified
Operating Mode
Momentary
Product Name
Eaton M22 modular pushbutton
Actuator Color
Red
Degree Of Protection
NEMA 13;NEMA 4X
Inscription
STOP
Mounting Method
Flush
Hazardous Location Specification
Not Rated
Resistance Properties
Corrosion Resistant
Operator Material
Polycarbonate
Number of Indicator Lights
0
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operating Temperature - Maximum
158 Degrees F

Dimensions

Panel Cutout Diameter
22 mm
Size
22.5 mm
Product Height
1.5 in
Product Width
1.5 in
Product Length/Depth
1.5 in
Overall Height
1 in
Manufacturer Warranty Length
1 yr
Overall Width
1 in
Overall Depth
2 in
Fits Chest Size
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter

Description

Flush Push Button, Momentary, Head Material Plastic, Bezel Material Silver, IP Rating IP67, IP69K, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
