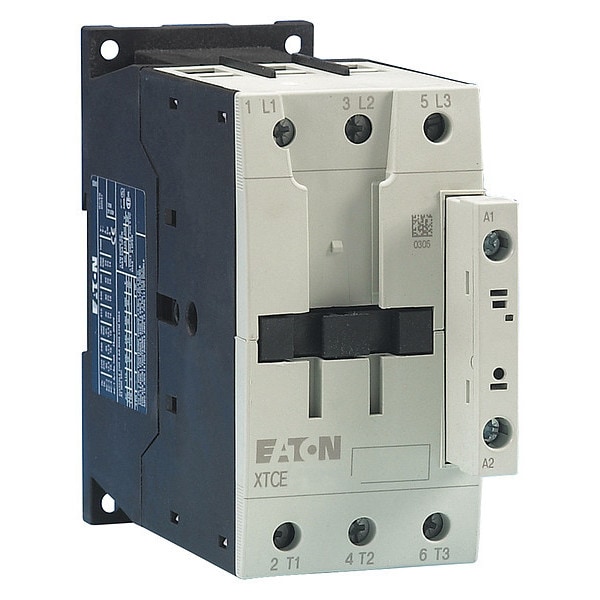

Eaton IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 3 P, Non-Reversing, Screw XTCE065D00A - main

IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 3 P, Non-Reversing, Screw

  • Mfr # XTCE065D00A

  • Zoro # G3035864

product price: $227.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XTCE065D00A
Zoro #
G3035864
UPC #
786685363264
Country of Origin
Romania

Dimensions

Frame Size
D
Product Length/Depth
6 in
Mounting Hole Distance - Height
4.13 in
Overall Width
2 in
Mounting Hole Diameter
0.16 in
Mounting Hole Distance - Width
1.77 in
Overall Depth
6 in
Overall Height
1.5 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
0
Standards
CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
Reversing
No
HP @ 1 Phase - 230V
15
HP @ 3 Phase - 575V
60 hp
Frame / Series / Class / Code
Frame D
Enclosure NEMA Rating
No Enclosure
Type
Full voltage non-reversing contactor
Series
XT
IP Rating
IP20
Contact Configuration
0 NO, 0 NC
Amperage Rating
65A
Product Name
Eaton XT IEC contactor
Compliances
CE Marked
Maximum Voltage Rating
690V AC
Maximum Operating Temperature
122 Degrees F
Contactor Style
IEC
Response Time
Less Than13 msec (AC Operated Opening Delay), Less Than18 msec (AC Operated Closing Delay), Less Than24 msec (DC Operated Opening Delay), Less Than54 msec (DC Operated Opening Delay)
Horsepower @ Three Phase - 480V AC
50 hp
Electrical Operating Durability
300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)
Full Load Current - Inductive
65 A
Minimum Operating Temperature
-13 Degrees F
Horsepower @ Three Phase - 240V AC
25 hp
Mechanical Operating Durability
10,000,000
Includes Auxiliary Contacts
No
NEMA Enclosure Rating
No Enclosure
Embedded Surge Suppressor
Yes
Full Load Current - Resistive
98 A
Horsepower @ Single Phase - 240V AC
15 hp
Mounting Style
DIN Rail, Panel
Horsepower @ Three Phase - 208V AC
20 hp
Horsepower @ Three Phase - 600V AC
60 hp
Horsepower @ Single Phase - 120V AC
5 hp
Frequency
50/60 Hz

Description

The Eaton XT IEC contactor is a 3-pole IEC magnetic contactor with a 120 V AC coil. It is non-reversing and has no auxiliary contacts, using screw terminals. It is configured in Frame D within the IEC family and is provided without an enclosure, featuring an IP20 rating.

Coil voltage: Rated for operation at 120 V AC within specified parameters

  • Action: Non-Reversing
  • Aux. contacts: No Auxiliary Contacts
  • Poles: 3
  • Frame/Type: Frame D; Full voltage non-reversing contactor; IEC Contactor
  • Maximum voltage rating: Rated for operation up to 690 V AC within specified limits
  • Full-load current: Designed to operate within these current ratings under specified conditions
  • Electrical connection: Suitable for wiring according to applicable standards and installation practices
  • Mounting style: Compatible with standard mounting methods as per manufacturer specifications
  • Enclosure: No Enclosure
  • IP rating: IP20 (Ingress Protection) rated against solid objects larger than 12.5 mm diameter; not protected against water or moisture
  • Certifications/Standards: UL Listed; CSA Certified; IEC 60947; EN 60947; RoHS; CE Marked
  • Mechanical operating durability: 10,000,000 cycles
  • Electrical operating durability: 300 (AC-4 400V Ie); 800 (AC-1 400V Ie); 800 (AC-3 400V Ie)
  • Dimensions: Width 2 in; Depth 5.2 in; Height 2.17 in
