  13. IEC Miniature Magnetic Contactor, 1NC, 120V AC, 3 P, Non-Reversing, Screw

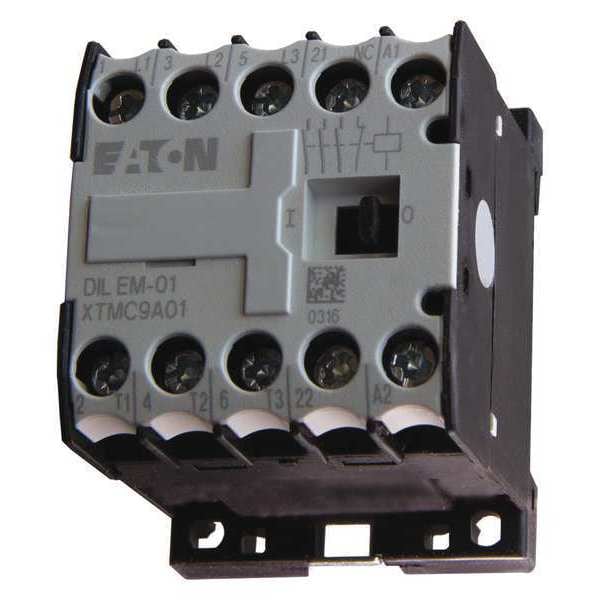

Eaton IEC Miniature Magnetic Contactor, 1NC, 120V AC, 3 P, Non-Reversing, Screw XTMC9A01A - main

IEC Miniature Magnetic Contactor, 1NC, 120V AC, 3 P, Non-Reversing, Screw

  • Mfr # XTMC9A01A

  • Zoro # G0571663

product price: $107.99
/ea
Item requires special delivery charges. A $75.00 per item surcharge will be applied.

Key Features

Auxiliary Contact Form
1NC
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XTMC9A01A
Zoro #
G0571663
UPC #
786685363714
Country of Origin
Germany

Dimensions

Product Length/Depth
2.5 in
Frame Size
A
Mounting Hole Distance - Width
1.38 in
Overall Height
2 in
Mounting Hole Distance - Height
1.98 in
Overall Depth
2.5 in
Overall Width
2.5 in
Mounting Hole Diameter
0.16 in

Details

Item
IEC Miniature Magnetic Contactor
Auxiliary Contact Form
1NC
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
1
Standards
CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
HP @ 3 Phase - 575V
5 hp
HP @ 1 Phase - 230V
1-1/2
Reversing
No
Frame / Series / Class / Code
Frame A
Enclosure NEMA Rating
No Enclosure
Type
Full voltage non-reversing mini contactor
Series
XT
IP Rating
IP20
Amperage Rating
8.80A
Product Name
Eaton XT IEC mini contactor
Contact Configuration
1 NC
Compliances
CE Marked
Frequency
50/60 Hz
Mechanical Operating Durability
10,000,000
Embedded Surge Suppressor
Yes
Horsepower @ Single Phase - 240V AC
1 1/2 hp
Full Load Current - Resistive
20 A
Includes Auxiliary Contacts
Yes
Minimum Operating Temperature
-13 Degrees F
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 208V AC
2 hp
Horsepower @ Three Phase - 240V AC
3 hp
Horsepower @ Three Phase - 480V AC
5 hp
Maximum Voltage Rating
690V AC/DC
Mounting Postion
Vertical
Full Load Current - Inductive
9:00 AM
Contactor Style
IEC
Horsepower @ Three Phase - 600V AC
5 hp
Maximum Operating Temperature
122 Degrees F
Response Time
14 msec (AC Coil Closing Delay Min), 15 msec (DC Coil Opening Delay min), 18 msec (AC Coil Opening Delay Max), 21 msec (AC Coil Closing Delay Max), 25 msec (DC Coil Opening Delay Max), 26 msec (DC Coil Closing Delay Min), 35 msec (DC Coil Closing Delay Max), 8 msec (AC Coil Opening Delay min)
Horsepower @ Single Phase - 120V AC
1/2 hp
Mounting Style
DIN Rail, Panel

Description

The EATON - IEC Miniature Magnetic Contactor is a non-reversing, full voltage contactor intended for use in industrial and commercial settings. This device operates with a coil voltage of 120V AC and is rated for a maximum of 8.80A current. The contactor features a single auxiliary contact configuration (1NC) and uses screw terminals for electrical connection. Constructed according to the IEC standard, which is globally recognized, it comes without an enclosure (NEMA Rating). Its compact dimensions make it suitable for installations where space is at a premium.

Key Features:

  • Non-Reversing Action: This feature means that the device can only switch in one direction.
  • Coil Voltage: Operates on 120V AC power supply.
  • Amperage Rating: Rated for a maximum of 8.80A current.
  • Auxiliary Contact Configuration: Comes with one normally closed (1NC) auxiliary contact.
  • Electrical Connection: Uses screw terminals for secure electrical connections.
  • Certifications & Compliances: Has certifications from UL Listed, CSA Certified, IEC 60947, EN 60947 and carries the CE Marking - these do not guarantee safety but indicate compliance with certain standards.
  • Horsepower Compatibility: Compatible with motors having horsepower within specified ranges from 0.5 hp @ Single Phase - 120V AC up to maximum of 5 hp @ Three Phase -600V AC
  • Mounting Style: Can be mounted on DIN Rail or Panel
  • Operating Temperature Range : Operating temperature range is between -13 Degrees F and a maximum of 122 Degrees F.
