  13. IEC Miniature Magnetic Contactor, No Auxiliary Contacts, 120V AC, 4 P, Non-Reversing, Screw

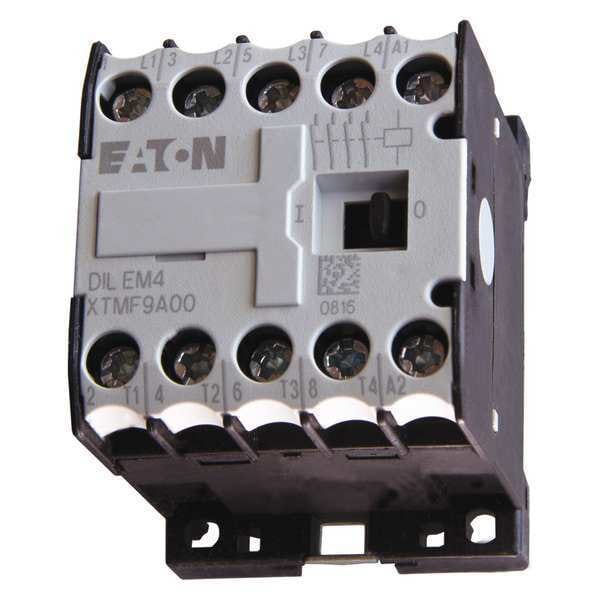

Eaton IEC Miniature Magnetic Contactor, No Auxiliary Contacts, 120V AC, 4 P, Non-Reversing, Screw XTMF9A00A - main

IEC Miniature Magnetic Contactor, No Auxiliary Contacts, 120V AC, 4 P, Non-Reversing, Screw

  • Mfr # XTMF9A00A

  • Zoro # G3005983

product price: $65.79
/ea

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
120V AC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XTMF9A00A
Zoro #
G3005983
UPC #
786685363967
Country of Origin
Germany

Dimensions

Frame Size
A
Product Length/Depth
2.5 in
Overall Height
2 in
Overall Depth
2.5 in
Overall Width
2.5 in

Details

Item
IEC Miniature Magnetic Contactor
Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
120V AC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
0
Standards
CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
HP @ 1 Phase - 230V
1
Frame / Series / Class / Code
Frame A
Reversing
No
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase - 575V
5 hp
Type
Full voltage non-reversing mini contactor
Series
XT
IP Rating
IP20
Compliances
CE Marked
Amperage Rating
8.80A
Contact Configuration
0 NO, 0 NC
Product Name
Eaton XT IEC mini contactor
Full Load Current - Inductive
9:00 AM
Frequency
50/60 Hz
Embedded Surge Suppressor
Yes
Maximum Operating Temperature
122 Degrees F
Minimum Operating Temperature
-13 Degrees F
Phase
Three
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 240V AC
3 hp
Mounting Postion
Vertical
Maximum Voltage Rating
690V AC/DC
Mounting Style
DIN Rail, Panel
Includes Auxiliary Contacts
No
Horsepower @ Three Phase - 480V AC
5 hp
Contactor Style
IEC
Horsepower @ Single Phase - 120V AC
1/2 hp
Horsepower @ Single Phase - 240V AC
1 hp
Full Load Current - Resistive
20 A
Horsepower @ Three Phase - 208V AC
2 hp
Horsepower @ Three Phase - 600V AC
4 hp
Response Time
14 msec (AC Coil Closing Delay Min), 15 msec (DC Coil Opening Delay min), 18 msec (AC Coil Opening Delay Max), 21 msec (AC Coil Closing Delay Max), 25 msec (DC Coil Opening Delay Max), 26 msec (DC Coil Closing Delay Min), 35 msec (DC Coil Closing Delay Max), 8 msec (AC Coil Opening Delay min)
Mechanical Operating Durability
10,000,000

Description

The EATON - IEC Miniature Magnetic Contactor is a non-reversing, full voltage mini contactor with no auxiliary contacts. It operates on a coil voltage of 120V AC and has a frequency rating of 50-60 Hz. This product comes in Frame A size and can be mounted vertically on either DIN Rail or Panel. The contactor's electrical connection is facilitated through screw terminals, ensuring secure connectivity.

Key features include:

  • Amperage Rating: Has an amperage rating of 8.80A as per product specifications.
  • Certifications: The product is UL Listed, CSA Certified, CE Marked and complies with IEC 60947;EN 60947 standards.
  • Horsepower Ratings: Horsepower ratings vary according to the phase and voltage, as per product specifications.
  • Operating Temperature Range: Rated for operation within specified temperature ranges.
  • Mechanical Operating Durability: Has a mechanical operating capacity rated for numerous uses.
  • IP Rating: Comes with an IP20 rating as per product specifications; please refer to the IP Rating chart for more details on what this entails.
  • Response Time: Response times may vary based on coil type and operation delay, as indicated in the product's technical specifications.
