  15. Ill Mom Pb Guarded Buttonless, 22.5 mm, Red

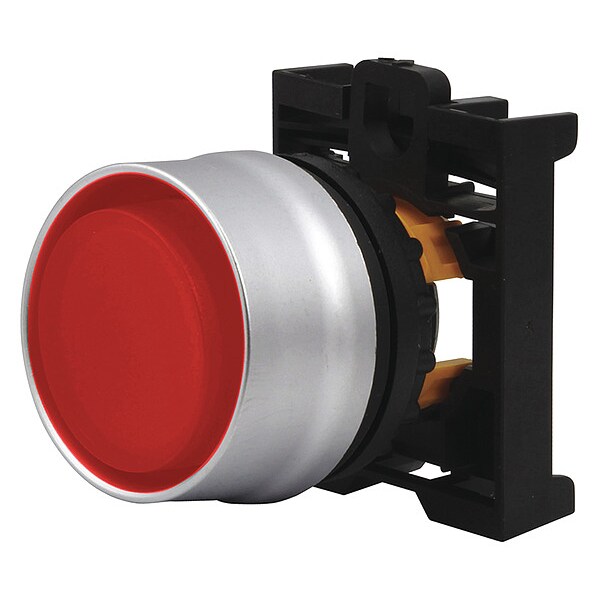

Eaton Ill Mom Pb Guarded Buttonless, 22.5 mm, Red M22-DGLH-R - main

Ill Mom Pb Guarded Buttonless, 22.5 mm, Red

  • Mfr # M22-DGLH-R

  • Zoro # G3632838

product price: $20.99
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22-DGLH-R
Zoro #
G3632838
UPC #
786685274584
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22.5 mm
Product Length/Depth
1.17 in
Product Width
1.17 in
Product Height
.39 in
Manufacturer Warranty Length
1 yr
Overall Depth
7 in
Overall Height
1.5 in
Overall Width
5 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Series
M22
Number of Operators
1
NEMA Rating
4X,13
Type
22.5 mm Modular
Color
Red
Lamp Module Type
No Lamp Module Included
Replacement Lamp
Module Not Included
Bezel
Silver Guarded
Lamp Type
LED
Basic Material
Plastic
Type of Operator
Extended Button
IP Rating
IP67, IP69K
Lamp Module Voltage
Module Not Included
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Bezel Material
Silver
Lamp Voltage
Dependent on Module Used
Illumination
Illuminated
Button color
Blue
Environmental rating
IP67, IP69K, NEMA 4X, NEMA 13
Actuator
Flush, button
Compliances
Bureau Veritas
Application
Pushbutton
Special features
M22 series
Certifications
CCC Marked
Actuator function
Momentary
Operating cycles
5 million
Product Name
Eaton M22 modular pushbutton
Operating Temperature - Maximum
158 Degrees F
Hazardous Location Specification
Not Rated
Product Type
Push Button Operators
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Material
Polycarbonate
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Corrosion Resistant
Number of Indicator Lights
1

Description

Extended Push Button, 22.5 mm, Momentary, Type of Operator Extended Button, Basic Material Plastic, Head Material Plastic, Bezel Material Silver, Color Red, NEMA Rating 4X,13, IP Rating IP67, IP69K, Legend Not Applicable, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
