  15. Ill Mom Pb Sil-bzl Extd Yel, 22.5 mm, Green

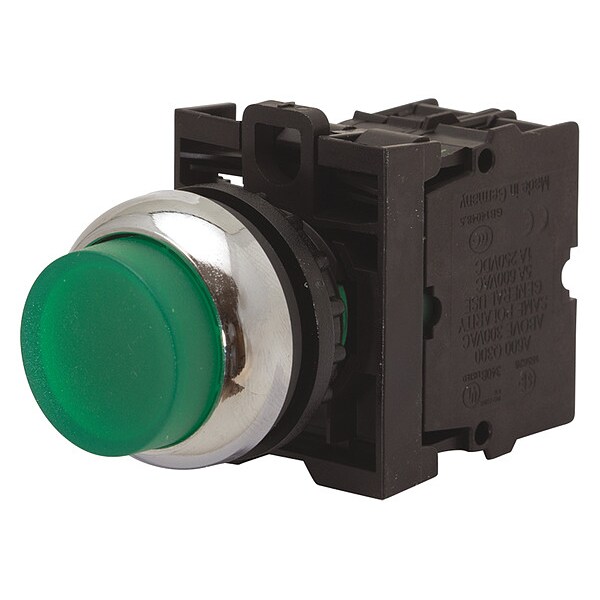

Eaton Ill Mom Pb Sil-bzl Extd Yel, 22.5 mm, Green M22-DLH-G - main

Ill Mom Pb Sil-bzl Extd Yel, 22.5 mm, Green

  • Mfr # M22-DLH-G

  • Zoro # G3632619

product price: $14.69
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22-DLH-G
Zoro #
G3632619
UPC #
786685274676
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22.5 mm
Product Length/Depth
1.17 in
Product Height
.39 in
Product Width
1.17 in
Overall Height
0.65 in
Overall Width
1.17 in
Manufacturer Warranty Length
1 yr
Overall Depth
1.17 in

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Green
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
IP Rating
IP67, IP69K
Lamp Type
LED
Basic Material
Plastic
Lamp Module Voltage
Module Not Included
Replacement Lamp
Module Not Included
Type
22.5 mm Modular
Lamp Module Type
No Lamp Module Included
Bezel Material
Silver
Number of Operators
1
Color
Green
NEMA Rating
4X,13
Bezel
Silver
Lamp Voltage
Dependent on Module Used
Series
M22
Type of Operator
Extended Button
Actuator
Flush, button
Compliances
Bureau Veritas
Operating cycles
1 million
Special features
M22 series
Certifications
CCC Marked
Environmental rating
IP67, IP69K, NEMA 4X, NEMA 13
Illumination
Illuminated
Application
Pushbutton
Actuator function
Maintained
Button color
Yellow
Product Name
Eaton M22 modular pushbutton
Operating Temperature - Maximum
158 Degrees F
Hazardous Location Specification
Not Rated
Product Type
Push Button Operators
Operator Material
Polycarbonate
Resistance Properties
Corrosion Resistant
Operating Temperature - Minimum
-13 Degrees F
Number of Indicator Lights
1
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Extended Push Button, 22.5 mm, Momentary, Type of Operator Extended Button, Basic Material Plastic, Head Material Plastic, Bezel Material Silver, Color Green, NEMA Rating 4X,13, IP Rating IP67, IP69K, Legend Not Applicable, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
