  15. Ill Mom Pb Sil-bzl Flsh Blu, 22.5 mm, White

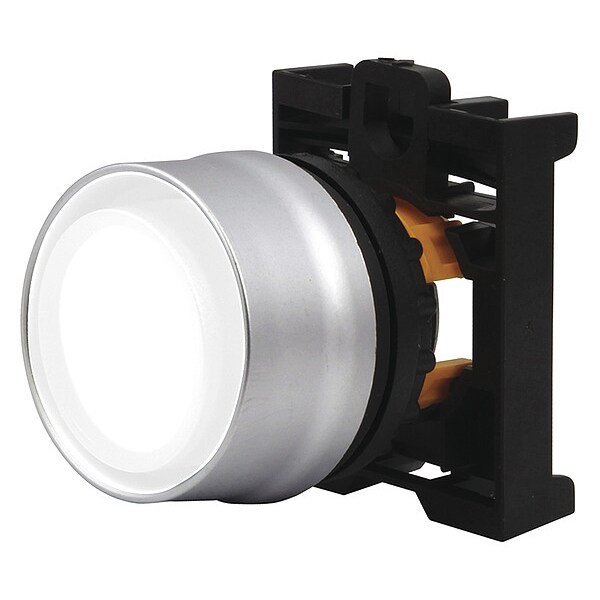

Eaton Ill Mom Pb Sil-bzl Flsh Blu, 22.5 mm, White M22-DGLH-W - main

Ill Mom Pb Sil-bzl Flsh Blu, 22.5 mm, White

  • Mfr # M22-DGLH-W

  • Zoro # G3633057

product price: $23.89
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22-DGLH-W
Zoro #
G3633057
UPC #
786685274560
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22.5 mm
Product Height
.39 in
Product Width
1.17 in
Product Length/Depth
1.17 in
Overall Height
1 in
Overall Width
5 in
Overall Depth
8 in
Manufacturer Warranty Length
1 yr

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
White
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Color
White
Replacement Lamp
Module Not Included
Number of Operators
1
Type of Operator
Extended Button
Lamp Module Voltage
Module Not Included
IP Rating
IP67, IP69K
Lamp Type
LED
NEMA Rating
4X,13
Basic Material
Plastic
Lamp Module Type
No Lamp Module Included
Bezel
Silver Guarded
Series
M22
Type
22.5 mm Modular
Lamp Voltage
Dependent on Module Used
Bezel Material
Silver
Actuator
Flush, button
Button color
Green
Environmental rating
IP67, IP69K, NEMA 4X, NEMA 13
Certifications
CSA Certified
Illumination
Illuminated
Special features
M22 series
Actuator function
Momentary
Application
Pushbutton
Operating cycles
5 million
Compliances
GoST-R
Product Name
Eaton M22 modular pushbutton
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Resistance Properties
Corrosion Resistant
Number of Indicator Lights
1
Operating Temperature - Minimum
-13 Degrees F
Hazardous Location Specification
Not Rated
Operator Material
Polycarbonate
Product Type
Push Button Operators

Description

Extended Push Button, 22.5 mm, Momentary, Type of Operator Extended Button, Basic Material Plastic, Head Material Plastic, Bezel Material Silver, Color White, NEMA Rating 4X,13, IP Rating IP67, IP69K, Legend Not Applicable, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
