  13. Illum Push Button Operator, 22mm, White
Shop All Push Button Accessories
Eaton

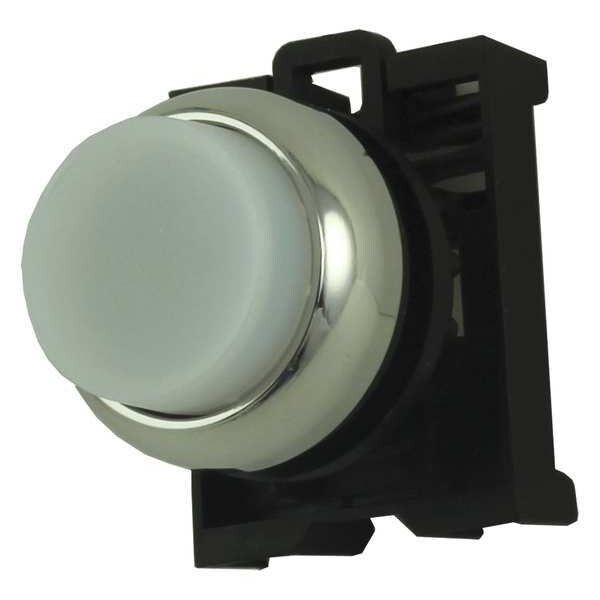

Illum Push Button Operator, 22mm, White

product price: $12.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 22 mm
  • Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
  • Color White
  • IP Rating IP67, IP69K
  • Head Material Plastic
See all product information

Product Information

Dimensions

Size 22 mm
Product Width .39 in
Product Height 1.17 in
Product Length/Depth 1.17 in
Overall Width 0.39 in
Overall Depth 1.17 in
Panel Cutout Diameter 22 mm
Overall Height 1.17 in
Manufacturer Warranty Length 1 yr

Details

Item Flush Push Button
Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Color White
IP Rating IP67, IP69K
Head Material Plastic
Lamp Voltage Dependent on Module Used
Terminal Connection Screw Clamp
Basic Material Metal
Lamp Type LED
Lamp Module Voltage Module Not Included
Action Momentary
NEMA Rating 1, 13, 2, 3, 4, 4X
Bezel Chrome Die Cast Aluminum
Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Lamp Module Type No Lamp Module Included
Type of Operator Extended Button
Bezel Material Metal
Number of Operators 1
Type 22.5 mm RMQ-Titan Modular
Application Pushbutton
Operating Mode Momentary
Series M22
Certifications Contact Manufacturer
Illumination Illuminated
Special Features M22 series
Actuator Flush
Enclosure NEMA 4X
Actuator function Momentary
Environmental rating IP67, IP69K (IP66 key-release)
Product Name Eaton M22 modular pushbutton
Operator Material Polycarbonate
NEMA Enclosure Rating 13, 4X
Resistance Properties Corrosion Resistant
Operator Illumination Illuminated
Operating Temperature - Maximum 158 Degrees F
Head Color White
Number of Indicator Lights 1
Operating Temperature - Minimum -13 Degrees F
Hazardous Location Specification Not Rated
Product Type Push Button Operators
Push Button Style Flush

Description

Flush Push Button, 22 mm, Momentary, Type of Operator Extended Button, Basic Material Metal, Head Material Plastic, Bezel Material Metal, Color White, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP67, IP69K, Legend Not Applicable, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
