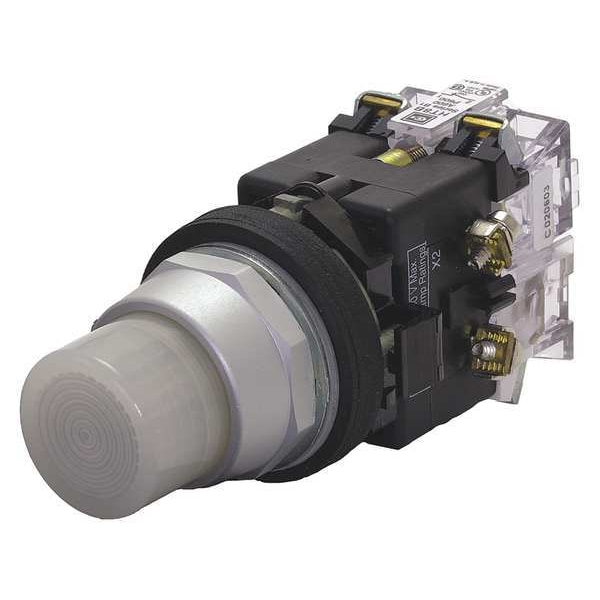

Eaton Illuminated Push Button, 1NO, 24VAC/DC HT8GBWAF3 - main

Illuminated Push Button, 1NO, 24VAC/DC

  • Mfr # HT8GBWAF3

  • Zoro # G8855594

product price: $125.99
/ea
Free Shipping & Returns

Key Features

Color
White
Action
Momentary
Lamp Module Type
Full Voltage
Lamp Type
LED
Basic Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HT8GBWAF3
Zoro #
G8855594
UPC #
782113585260
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Height
5 in
Product Length/Depth
3 in
Product Width
2 in
Panel Cutout Diameter
30 mm
Overall Width
2 in
Manufacturer Warranty Length
1 yr
Overall Height
5 in
Overall Depth
3 in

Details

Item
Illuminated Push Button
Color
White
Action
Momentary
Lamp Module Type
Full Voltage
Lamp Type
LED
Basic Material
Metal
Lamp Voltage
24V AC/DC
Standards
CSA, UL Listed
Number of Operators
1
NEMA Rating
12, 13, 3, 3R, 4, 4X
Replacement Lamp
Mfr. No. HT8LEDYF3
Contact Rating
10A @ 600V AC/DC
NEMA Contact Rating Designation
A600/P600
Head Material
Metal
Terminal Connection
Screw Clamp
Type of Operator
Round Button
Contact Form
1NO
IP Rating
IP65
Lamp Module Voltage
24V AC/DC
Bezel
Anodized Aluminum/Mounting Rings
Features
Allen-Bradley Pushbutton Panel Compatible
Product Type
Push Button Operators
Application
Pushbutton
Type
30.5 mm, Watertight/Oiltight
Bezel Material
Chrome
Operating Mode
Momentary
Illumination
Illuminated
Special Features
HT800 series
Actuator function
Momentary
Contact configuration
1 NO
Actuator
Extended
Lens Color
White
Operator material
Plastic
Enclosure
NEMA 4X
Certifications
CSA Certified
Light unit voltage
24 Vac/dc
Actuator color
White
Light unit type
LED, full voltage
Product Name
Eaton HT800 pushbutton
Series
HT800
Operator Voltage Rating - Maximum
28 V
Operating Temperature - Minimum
10 Degrees F
Resistance Properties
Oil and Grease Resistant, Watertight
Operating Temperature - Maximum
140 Degrees F
Number of Indicator Lights
0
Mechanical Operating Durability
1.00 x 10^7
Push Button Style
Extended
Lamp Voltage - Maximum
24 V AC/DC
Operator Illumination
Illuminated
Head Color
White
Operator Material
Metal
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
AC Contact Rating
10 A @ 600 V
DC Contact Rating
5 A @ 250 V

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Metal, Contact Form 1NO, Bezel Anodized Aluminum/Mounting Rings, Color White, Contact Rating 10A @ 600V AC/DC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CSA, UL Listed, Terminal Connection Screw Clamp, Features Allen-Bradley Pushbutton Panel Compatible
