  15. Illuminated Push Button, 22.5 mm, 2NO, Green

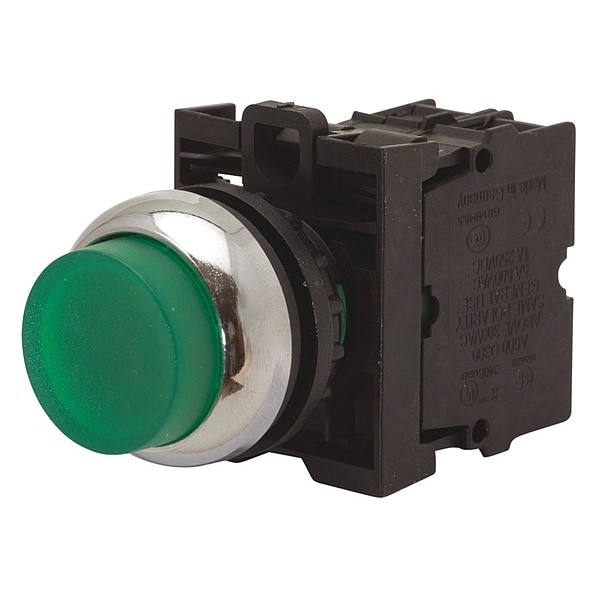

Eaton Illuminated Push Button, 22.5 mm, 2NO, Green M22-DLH-G-K20-G - main

Illuminated Push Button, 22.5 mm, 2NO, Green

  • Mfr # M22-DLH-G-K20-G

  • Zoro # G3631410

product price: $67.39
/ea

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green; White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22-DLH-G-K20-G
Zoro #
G3631410
UPC #
786685274928
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22.5 mm
Product Height
2.16 in
Product Length/Depth
1.46 in
Product Width
1.18 in
Overall Width
1 in
Overall Depth
2.56 in
Overall Height
1 in
Manufacturer Warranty Length
1 yr

Details

Item
Illuminated Push Button
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Green; White
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
AC Contact Rating
6 A @ 240 V
Features
Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter
DC Contact Rating
3 A @ 24 V
Type
22.5 mm Modular
Lamp Type
LED
Type of Operator
Extended Button
Legend/Background Color
No Legend/Green
Color
Green
Contact Form
2NO
IP Rating
IP67, IP69K
Bezel Material
Nylon
Series
M22
Number of Operators
1
NEMA Rating
4X
Legend
No Legend
Lamp Module Type
Full Voltage
Bezel
Silver Coated
Legend Markings
No Legend
Voltage
12 to 30 V AC/DC
Contact Type
2NO
Product Type
Push Button Operators
Actuator
Button, extended
Special features
M22 series
Compliances
CE Marked
Certifications
CSA Certified
Contact configuration
2 NO
Actuator function
Momentary
Application
Pushbutton
Illumination
Illuminated
Button color
White
Environmental rating
IP67, IP69K, NEMA 4X, NEMA 13
Product Name
Eaton M22 modular pushbutton
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operating Temperature - Maximum
158 Degrees F
Lamp Voltage - Maximum
30 V AC/DC
Resistance Properties
Corrosion Resistant
Mechanical Operating Durability
5.00 x 10^6
Operator Material
Plastic
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
30 V AC/DC

Description

Illuminated Push Button, 22.5 mm, Momentary Action, Extended Button Type of Operator, Head Material Plastic, Contact Form 2NO, Bezel Silver Coated, Color Green, Number of Operators 1, NEMA Rating 4X, IP Rating IP67, IP69K, Legend No Legend, Legend/Background Color No Legend/Green, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Terminal Connection Screw Clamp, Features Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter
