  13. Illuminated Push Button, 22mm, Green
Shop All Push Button Accessories
Eaton

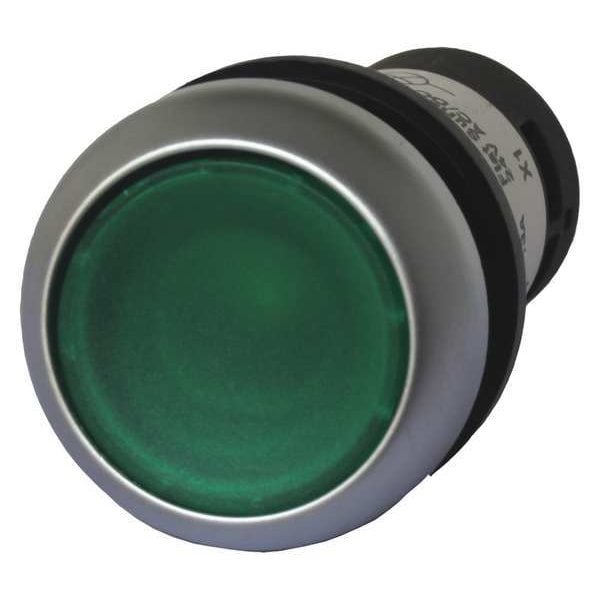

Illuminated Push Button, 22mm, Green

product price: $64.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 22 mm
  • Color Green
  • IP Rating 67, 69K
  • Basic Material Plastic
  • Number of Operators 1
See all product information

Product Information

Dimensions

Size 22 mm
Product Width 54.6 in
Product Length/Depth 54.6 in
Product Height 1.17 in

Details

Item Illuminated Push Button
Color Green
IP Rating 67, 69K
Basic Material Plastic
Number of Operators 1
Terminal Connection Screw Clamp
Head Material Polycarbonate
Contact Form 1NO
Lamp Voltage 120
Lamp Module Voltage 120V AC
NEMA Contact Rating Designation A600
Contact Rating 1.5A @ 230V AC, 3A @ 24V DC
Standards CCC, CE, CSA, IEC 60947, Lloyd's Register, RoHS, UL, VDE 0660
Type of Operator Flush Button
Bezel Silver Coated Polycarbonate
Lamp Type Led
Action Momentary
NEMA Rating 1, 12, 13, 3, 4X
Lamp Module Type Full Voltage
Voltage rating 120 V
Compliances DIN VDE 0600
Actuator Flush button
Indicator type LED
Series C22
Contact configuration 1 NO
Certifications UL Listed
Button color Green
Actuator function Momentary
Illumination Illuminated
Product Name Eaton C22 compact pushbutton

Description

Illuminated Push Button, 22 mm, Momentary, Type of Operator Flush Button, Basic Material Plastic, Polycarbonate Head Material, 1NO Contact Form, Silver Coated Polycarbonate Bezel, Color Green, Lamp Module Voltage 120V AC, Lamp Module Type Full Voltage, Lamp Type LED, Lamp Voltage 120, Contact Rating 1.5A @ 230V AC, 3A @ 24V DC, NEMA Contact Rating Designation AC-15, DC-13, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 4X, IP Rating 67, 69K
