  15. Illuminated Push Button, 30 mm, 2NO/2NC, Blue

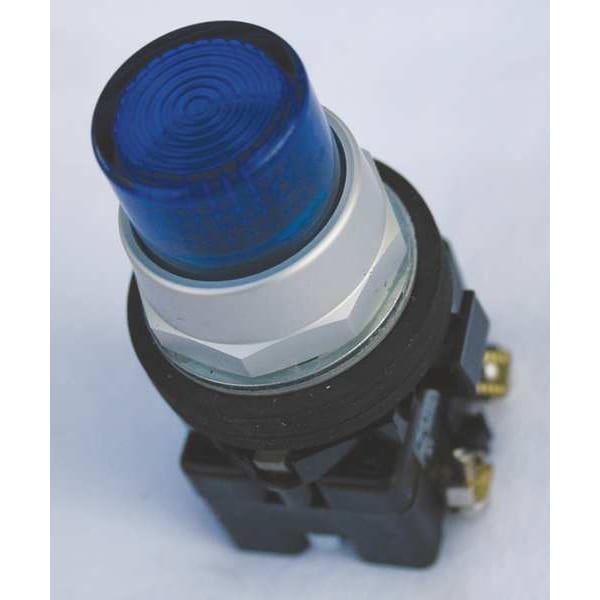

Eaton Illuminated Push Button, 30 mm, 2NO/2NC, Blue HT8GBBF1Q1L1 - main

Illuminated Push Button, 30 mm, 2NO/2NC, Blue

  • Mfr # HT8GBBF1Q1L1

  • Zoro # G4015776

product price: $188.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Color
Blue
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HT8GBBF1Q1L1
Zoro #
G4015776
UPC #
782113682587
Country of Origin
Dominican Republic

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Product Length/Depth
6.65 in
Product Width
2 in
Product Height
1.4 in
Overall Height
1.4 in
Manufacturer Warranty Length
1 yr
Overall Width
2 in
Overall Depth
6.65 in

Details

Item
Illuminated Push Button
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Color
Blue
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
CSA, UL Listed
Voltage
120v
IP Rating
IP65
Lamp Module Type
Transformer
Type of Operator
Round Button
Lamp Module Voltage
120V AC
Contact Rating
10A @ 600V AC/DC
Basic Material
Metal
Number of Operators
1
Color
Blue
Lamp Type
LED
Contact Type
2NO/2NC
Contact Form
2NO/2NC
Replacement Lamp
Mfr. No. HT8L1T1
NEMA Contact Rating Designation
A600/P600
NEMA Rating
12, 13, 3, 3R, 4, 4X
Bezel
Anodized Aluminum/Mounting Rings
Lamp Voltage
6V AC
Bezel Material
Chrome
DC Contact Rating
5 A @ 250 V
Series
HT800
Type
30.5 mm, Watertight/Oiltight
Features
Allen-Bradley Pushbutton Panel Compatible
AC Contact Rating
10 A @ 600 V
Product Type
Push Button Operators
Special features
HT800 series
Actuator Color
Blue
Contact configuration
2 NO-2 NC
Light unit type
LED, transformer
Illumination
Illuminated
Actuator
Extended
Operating mode
Momentary
Application
Pushbutton
Certifications
CSA Certified
Actuator function
Momentary
Lens Color
Blue
Light unit voltage
120 Vac/dc
Operator material
Plastic
Product Name
Eaton HT800 pushbutton
Resistance Properties
Oil and Grease Resistant, Watertight
Operating Temperature - Minimum
10 Degrees F
Operator Material
Metal
Operating Temperature - Maximum
140 Degrees F
Number of Indicator Lights
0
Lamp Voltage - Maximum
120 V AC/DC
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operator Voltage Rating - Maximum
28 V
Mechanical Operating Durability
5.00 x 10^6

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Metal, Contact Form 2NO/2NC, Bezel Anodized Aluminum/Mounting Rings, Color Blue, Contact Rating 10A @ 600V AC/DC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CSA, UL Listed, Terminal Connection Screw Clamp, Features Allen-Bradley Pushbutton Panel Compatible, Includes Lamp
