  15. Illuminated Push Button, 30mm, Clear

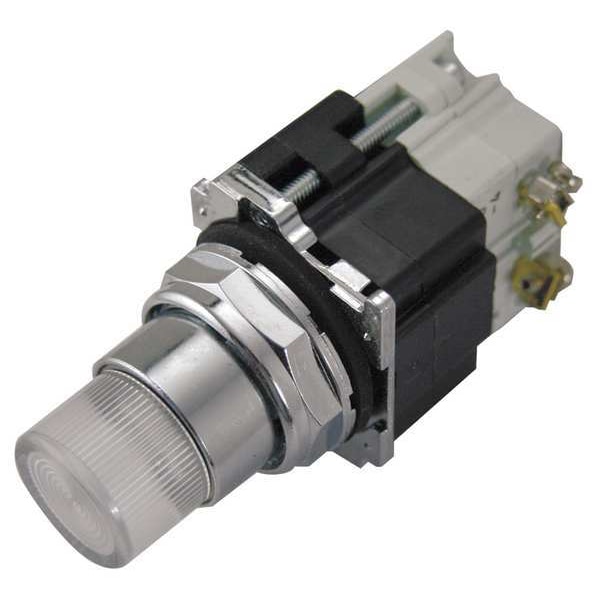

Eaton Illuminated Push Button, 30mm, Clear 10250T476C25-51 - main

Illuminated Push Button, 30mm, Clear

  • Mfr # 10250T476C25-51

  • Zoro # G5226706

product price: $210.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V DC
Color
Clear
Lamp Module Voltage
24V AC/DC
NEMA Rating
12, 13, 3, 3R, 4, 4X
IP Rating
IP65
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T476C25-51
Zoro #
G5226706
UPC #
786680120619
Country of Origin
United States

Dimensions

Size
30 mm
Manufacturer Warranty Length
1 yr
Panel Cutout Diameter
30 mm

Details

Item
Illuminated Push Button
Voltage
24V DC
Color
Clear
Lamp Module Voltage
24V AC/DC
NEMA Rating
12, 13, 3, 3R, 4, 4X
IP Rating
IP65
Head Material
Metal
Contact Rating
10A @ 600V AC/DC
Number of Operators
1
Type of Operator
Round Button
Standards
CE EN 60947-5-1, CE EN 60947-5-5, CSA C22.2 No.14, CSA LR68551, RoHS, UL 508, UL 131568
Contact Type
1NC
Lamp Module Type
Full Voltage
Basic Material
Metal
Lamp Voltage
24V AC/DC
Terminal Connection
Screw Clamp
Replacement Lamp
Mfr. No. 28-5185
Bezel
Chrome Plated Zinc Die Cast
Action
Momentary
Contact Form
1NC
Lamp Type
Incandescent
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Product Type
Push Button Operators
Bezel Material
Chrome Plated Zinc Die Cast
AC Contact Rating
10 A @ 600 V
DC Contact Rating
5 A @ 250 V
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operator Material
Metal
Push Button Style
Extended
Resistance Properties
Oil and Grease Resistant, Watertight
Series
10250T
Operator Voltage Rating - Maximum
120 V AC/DC
Operating Temperature - Minimum
1 Degrees F
Head Color
Clear
Number of Indicator Lights
0
Lamp Voltage - Maximum
24 V AC/DC
Operating Temperature - Maximum
150 Degrees F
Mechanical Operating Durability
1.00 x 10^7
Operator Illumination
Illuminated

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Metal, Contact Form 1NC, Bezel Chrome Plated Zinc Die Cast, Color Clear, Contact Rating 10A @ 600V AC/DC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE EN 60947-5-1, CE EN 60947-5-5, CSA C22.2 No.14, CSA LR68551, RoHS, UL 508, UL 131568, Terminal Connection Screw Clamp
