  15. Illuminated Push Button, 30mm, Yellow

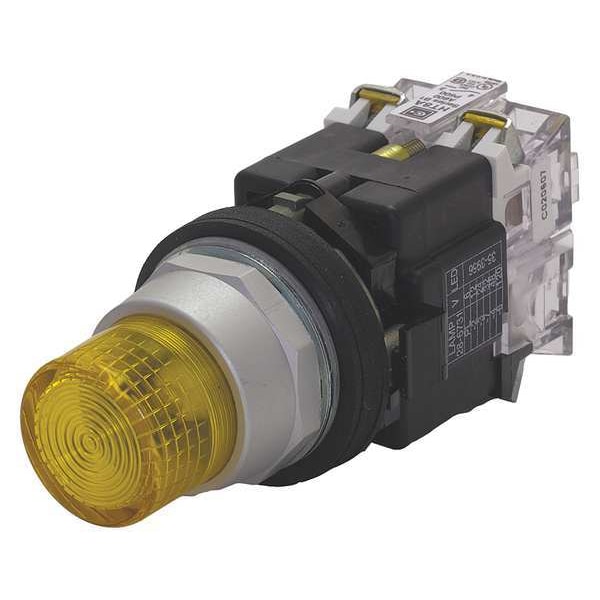

Eaton Illuminated Push Button, 30mm, Yellow HT8GBYAF7 - main

Illuminated Push Button, 30mm, Yellow

  • Mfr # HT8GBYAF7

  • Zoro # G8855603

product price: $133.99
/ea
Free Shipping & Returns

Key Features

Color
Yellow
Lamp Module Type
Full Voltage
Bezel
Anodized Aluminum/Mounting Rings
Standards
CSA, UL Listed
Lamp Type
LED
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HT8GBYAF7
Zoro #
G8855603
UPC #
782113582832
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Height
1.4 in
Product Width
2 in
Product Length/Depth
6.65 in
Overall Height
1.4 in
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
1 yr
Overall Width
2 in
Overall Depth
6.65 in

Details

Item
Illuminated Push Button
Color
Yellow
Lamp Module Type
Full Voltage
Bezel
Anodized Aluminum/Mounting Rings
Standards
CSA, UL Listed
Lamp Type
LED
Head Material
Metal
Action
Momentary
Type of Operator
Round Button
NEMA Rating
12, 13, 3, 3R, 4, 4X
Terminal Connection
Screw Clamp
Contact Form
1NO
Number of Operators
1
Basic Material
Metal
Lamp Module Voltage
120V AC
IP Rating
IP65
Lamp Voltage
120V AC
NEMA Contact Rating Designation
A600/P600
Replacement Lamp
Mfr. No. HT8LEDYF7
Contact Rating
10A @ 600V AC/DC
Features
Allen-Bradley Pushbutton Panel Compatible
Product Type
Push Button Operators
Application
Pushbutton
Bezel Material
Chrome
Type
30.5 mm, Watertight/Oiltight
Contact configuration
1 NO
Lens Color
Yellow
Light unit type
LED, full voltage
Actuator color
Yellow
Certifications
CSA Certified
Operating Mode
Momentary
Actuator
Extended
Special Features
HT800 series
Enclosure
NEMA 12
Illumination
Illuminated
Light unit voltage
120 Vac/dc
Operator material
Plastic
Actuator function
Momentary
Product Name
Eaton HT800 pushbutton
Head Color
Yellow
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operating Temperature - Maximum
140 Degrees F
Lamp Voltage - Maximum
120 V AC/DC
Operator Voltage Rating - Maximum
28 V
Resistance Properties
Oil and Grease Resistant, Watertight
Number of Indicator Lights
0
AC Contact Rating
10 A @ 600 V
Operator Illumination
Illuminated
Operating Temperature - Minimum
10 Degrees F
Mechanical Operating Durability
1.00 x 10^7
DC Contact Rating
5 A @ 250 V
Operator Material
Metal
Series
HT800
Push Button Style
Extended

Description

Illuminated Push Button, 30 mm, Momentary Action, Round Button Type of Operator, Head Material Metal, Contact Form 1NO, Bezel Anodized Aluminum/Mounting Rings, Color Yellow, Contact Rating 10A @ 600V AC/DC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CSA, UL Listed, Terminal Connection Screw Clamp, Features Allen-Bradley Pushbutton Panel Compatible
