  15. IllumPushButton, FullVoltage, Green, 1NO

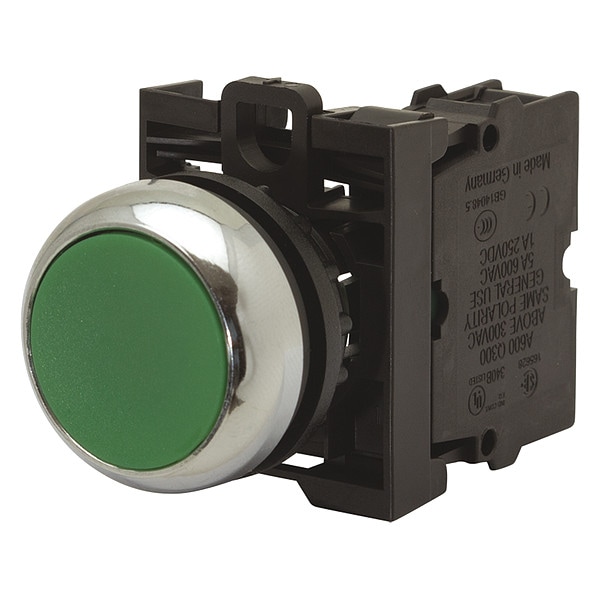

Eaton IllumPushButton, FullVoltage, Green, 1NO M22-DRL-G-K10-G - main

IllumPushButton, FullVoltage, Green, 1NO

  • Mfr # M22-DRL-G-K10-G

  • Zoro # G3631401

product price: $16.69
/ea

Key Features

Push Button Style
Flush
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22-DRL-G-K10-G
Zoro #
G3631401
UPC #
786685275079
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22.5 mm
Product Width
1.18 in
Product Height
1 in
Product Length/Depth
1.46 in
Overall Width
1 in
Manufacturer Warranty Length
1 yr
Overall Depth
2.26 in
Overall Height
1 in

Details

Item
Illuminated Push Button
Push Button Style
Flush
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Head Color
Green
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
IP Rating
IP67, IP69K
Bezel Material
Nylon
Contact Form
1NO
Features
Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter
Bezel
Silver
Number of Operators
1
DC Contact Rating
3 A @ 24 V
Lamp Type
LED
Series
M22
Type
22.5 mm Modular
AC Contact Rating
6 A @ 240 V
Lamp Module Type
Full Voltage
Product Type
Push Button Operators
Special features
M22 series
Button color
White
Certifications
CCC Marked
Compliances
CE Marked
Contact configuration
1 NO-1 NC
Actuator
Button, flush
Illumination
Illuminated
Environmental rating
IP67, IP69K, NEMA 4X, NEMA 13
Application
Pushbutton
Actuator function
Maintained
Resistance Properties
Corrosion Resistant
Operator Material
Plastic
Number of Indicator Lights
0
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Lamp Voltage - Maximum
30 V AC/DC
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Mechanical Operating Durability
1.00 x 10^6

Description

Illuminated Push Button, Maintained Action, Head Material Plastic, Contact Form 1NO, Number of Operators 1, IP Rating IP67, IP69K, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Terminal Connection Screw Clamp, Features Field Conversion from Momentary to Maintained can be Done, Includes Contact Block Mounting Adapter
