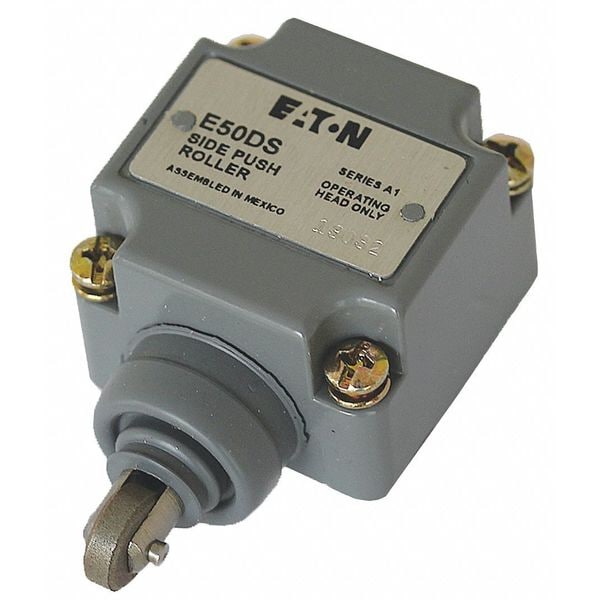

Eaton Limit Switch Head, Push Rollr, Side, .20 In E50DS4 - main

Limit Switch Head, Push Rollr, Side, .20 In

  • Mfr # E50DS4

  • Zoro # G5231983

product price: $231.99
/ea
Free Shipping & Returns

Key Features

Actuator Style
Push Roller Plunger
Actuator Location
Side
Actuator Length
0.2 in
For Use With
Mfr. No. E50SA
NEMA Rating
1, 12, 13, 2, 4, 4X, 6P
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E50DS4
Zoro #
G5231983
UPC #
782113681627
Country of Origin
Mexico

Dimensions

Actuator Length
0.2 in
Product Length/Depth
1.54 in
Product Height
1.05 in
Product Width
2.94 in
Manufacturer Warranty Length
1 yr
Arm Length - Maximum
0.2 in
Overall Depth
1.54 in
Roller Diameter
0.44 in
Overall Height
1.05 in
Roller Width
0.16 in
Overall Width
2.94 in

Details

Item
Limit Switch Head
Actuator Style
Push Roller Plunger
Actuator Location
Side
For Use With
Mfr. No. E50SA
NEMA Rating
1, 12, 13, 2, 4, 4X, 6P
Movement
Side
Travel
Operating Travel 0.065 in, Reset Travel 0.03 in, Total Travel 0.25 in
Operating Temp.
14 Degrees to 200 Degrees F
Amps
10
Voltage Rating
600V AC
Standards
CE, CSA, UL Listed
IP Rating
IP67
Description/Special Features
Momentary
Operating Force
2.2 N
Accuracy
Within 0.003
Compliances
CE Marked
Operating temperature - min
14°F
Enclosure material
Die cast zinc
Switch type
Side push roller
Environmental rating
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Operating temperature - max
201°F
Certifications
CSA Certified
Product Name
Eaton E50 NEMA heavy duty plug-in limit switch
Differential Travel
0.25 in
Plunger Adjustability
Fixed
Roller Adjustability
Fixed
Series
E50
Action
Momentary
Includes Actuator
Actuator Included
Directional Movement
Linear
Compatible with Series
E50
Total Travel
0.25 in
Compatible with Brand
Eaton
NEMA Enclosure Rating
1, 13, 3, 3S, 4, 4X, 6, 6P
Operating Temperature - Minimum
14 Degrees F
Roller Position
Side
Operating Torque
4 in-lb
Pretravel
0.41 in
Overtravel
0.07 in
Compatible with Manufacturer Model Number
E50SA
Operating Temperature - Maximum
201 Degrees F
Reset Travel
0.41 in
Roller Material
Nylon
Compatible Manufacturer Part Number
E50SA
Compatible Manufacturer Model Number
E50SA
Compatible with Manufacturer Model No.
E50SA
Compatible with Mfr. Model No.
E50SA
For Use with Mfr Model Number
E50SA
For Use With Mfr. Model Number
E50SA
Compatible Pump Manufacturer Part Number
E50SA
Compatible Mfr. Model Number
E50SA

Description

Limit Switch Head, Actuator Style Push Roller Plunger, Actuator Location Side, Actuator Length 0.2 in, Contact Form Not Applicable, Amps 10, Voltage Rating 600V AC, Travel Operating Travel 0.065 in, Reset Travel 0.03 in, Total Travel 0.25 in, Movement Side, Operating Force 2.2 N, Operating Temp. 14 Degrees to 200 Degrees F, NEMA Rating 1, 12, 13, 2, 4, 4X, 6P, IP Rating IP67, Standards CE, CSA, UL Listed, For Use With Mfr. No. E50SA
