  15. Limit Switch Head, Rotry Lvr, Side, 2.11 In

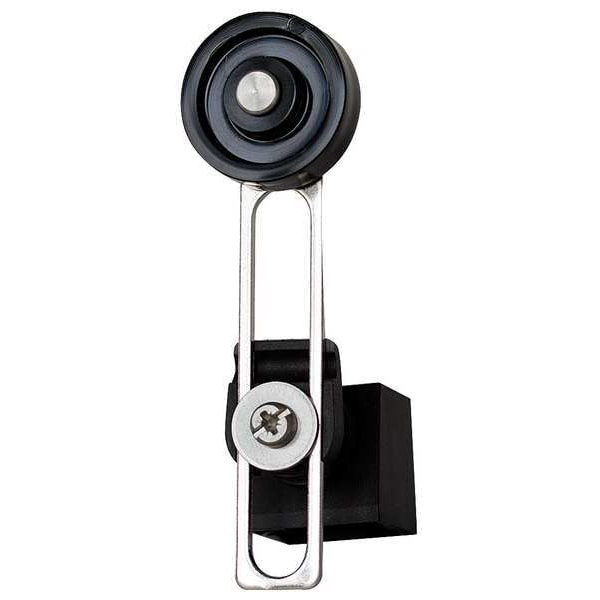

Eaton Limit Switch Head, Rotry Lvr, Side, 2.11 In LS-XRLA30 - main

Limit Switch Head, Rotry Lvr, Side, 2.11 In

  • Mfr # LS-XRLA30

  • Zoro # G6660647

product price: $30.29
/ea

Key Features

Actuator Style
Roller Lever Plunger
Actuator Location
Side
Actuator Length
2.11 in
For Use With
LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LS-XRLA30
Zoro #
G6660647
UPC #
786685393667
Country of Origin
Germany

Dimensions

Actuator Length
2.11 in
Product Length/Depth
.94 in
Product Width
.98 in
Product Height
4.21 in
Arm Length - Minimum
0.75 in
Overall Depth
0.94 in
Roller Width
1.18 in
Roller Diameter
1.57 in
Arm Length - Maximum
2.11 in
Overall Height
4.21 in
Manufacturer Warranty Length
1 yr
Overall Width
0.98 in

Details

Item
Limit Switch Head
Actuator Style
Roller Lever Plunger
Actuator Location
Side
For Use With
LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
Movement
Vertical
Operating Force
8 N
Amps
10
IP Rating
IP66, IP67
Travel
Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees
Voltage Rating
415V AC
Standards
RoHS, UL Listed
Description/Special Features
Momentary
Operating Temp.
-13 Degrees to 158 Degrees F
Operating temperature - max
158°F
Type
LS-Titan
Environmental rating
IP66, IP67
Certifications
UL Listed
Switch type
Operator only
Operating temperature - min
-13°F
Product Name
Eaton LS-Titan miniature DIN limit switch
Differential Travel
65 Degrees
NEMA Enclosure Rating
1, 12, 13, 2, 4, 4X, 6
Compatible with Series
LS-Titan
Reset Travel
5 Degrees
Arm Material
Metal
Operating Temperature - Minimum
-13 Degrees F
Compatible with Manufacturer Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Series
LS
Arm Adjustability
Adjustable
Roller Position
Side
Roller Material
Nylon
Action
Momentary
Plunger Adjustability
Adjustable
Roller Adjustability
Adjustable
Directional Movement
CCW/CW
Operating Torque
8.88 in-lb
Operating Temperature - Maximum
158 Degrees F
Overtravel
55 Degrees
Compatible with Brand
Eaton
Pretravel
55 Degrees
Total Travel
65 Degrees
Includes Actuator
Actuator Included
Compatible Manufacturer Part Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Manufacturer Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible with Manufacturer Model No.
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible with Mfr. Model No.
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
For Use with Mfr Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
For Use With Mfr. Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Pump Manufacturer Part Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Mfr. Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A

Description

Limit Switch Head, Actuator Style Roller Lever Plunger, Actuator Location Side, Actuator Length 2.11 in, Contact Form Not Applicable, Amps 10, Voltage Rating 415V AC, Travel Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees , Movement Vertical, Operating Force 8 N, Operating Temp. -13 Degrees to 158 Degrees F, NEMA Rating 1, 12, 13, 2, 4, 4X, 6, IP Rating IP66, IP67, Standards RoHS, UL Listed
