  15. Limit Switch Head, Rotry Lvr, Side, 2.54 In

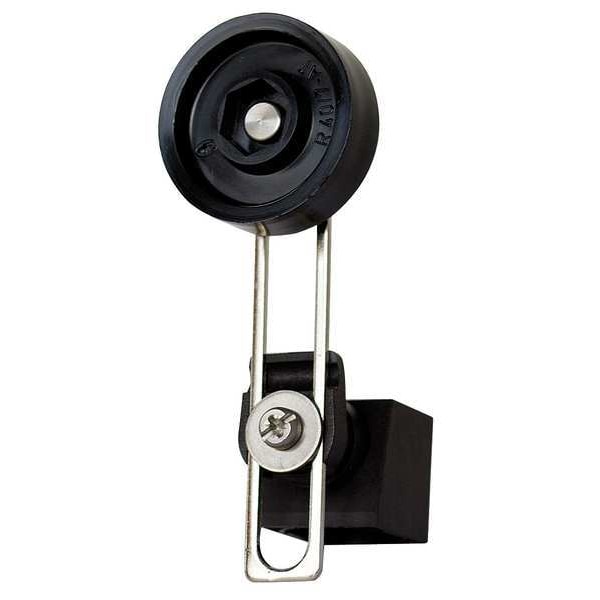

Eaton Limit Switch Head, Rotry Lvr, Side, 2.54 In LS-XRLA40 - main

Limit Switch Head, Rotry Lvr, Side, 2.54 In

  • Mfr # LS-XRLA40

  • Zoro # G7067873

product price: $37.89
/ea

Key Features

Actuator Style
Roller Lever Plunger
Actuator Location
Side
Actuator Length
2.54 in
For Use With
LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LS-XRLA40
Zoro #
G7067873
UPC #
786685393650
Country of Origin
Germany

Dimensions

Actuator Length
2.54 in
Product Length/Depth
.94 in
Product Width
.98 in
Product Height
4.41 in
Overall Width
0.98 in
Overall Depth
0.94 in
Arm Length - Minimum
0.75 in
Roller Diameter
1.57 in
Arm Length - Maximum
2.54 in
Roller Width
1.57 in
Manufacturer Warranty Length
1 yr
Overall Height
4.41 in

Details

Item
Limit Switch Head
Actuator Style
Roller Lever Plunger
Actuator Location
Side
For Use With
LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
Movement
Vertical
IP Rating
IP66, IP67
Standards
RoHS, UL Listed
Amps
10
Operating Force
8 N
Travel
Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees
Operating Temp.
-13 Degrees to 158 Degrees F
Description/Special Features
Momentary
Voltage Rating
415V AC
Operating temperature - max
158°F
Switch type
Adjustable side rotary
Certifications
UL Listed
Operating temperature - min
-13°F
Environmental rating
IP66, IP67
Type
LS-Titan
Product Name
Eaton LS-Titan miniature DIN limit switch
Total Travel
65 Degrees
Includes Actuator
Actuator Included
Roller Position
Side
Differential Travel
65 Degrees
Arm Adjustability
Adjustable
Reset Travel
5 Degrees
Action
Momentary
Roller Material
Nylon
Operating Temperature - Maximum
158 Degrees F
Series
LS
Operating Torque
8.88 in-lb
Pretravel
55 Degrees
Compatible with Manufacturer Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Arm Material
Metal
Plunger Adjustability
Adjustable
Overtravel
55 Degrees
Compatible with Series
LS-Titan
Compatible with Brand
Eaton
NEMA Enclosure Rating
1, 12, 13, 2, 4, 4X, 6
Operating Temperature - Minimum
-13 Degrees F
Roller Adjustability
Adjustable
Directional Movement
CCW/CW
Compatible Manufacturer Part Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Manufacturer Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible with Manufacturer Model No.
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible with Mfr. Model No.
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
For Use with Mfr Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
For Use With Mfr. Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Pump Manufacturer Part Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Mfr. Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A

Description

Limit Switch Head, Actuator Style Roller Lever Plunger, Actuator Location Side, Actuator Length 2.54 in, Contact Form Not Applicable, Amps 10, Voltage Rating 415V AC, Travel Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees , Movement Vertical, Operating Force 8 N, Operating Temp. -13 Degrees to 158 Degrees F, NEMA Rating 1, 12, 13, 2, 4, 4X, 6, IP Rating IP66, IP67, Standards RoHS, UL Listed
