  15. Limit Switch Head, Rotry Lvr, Side, 2.54 In

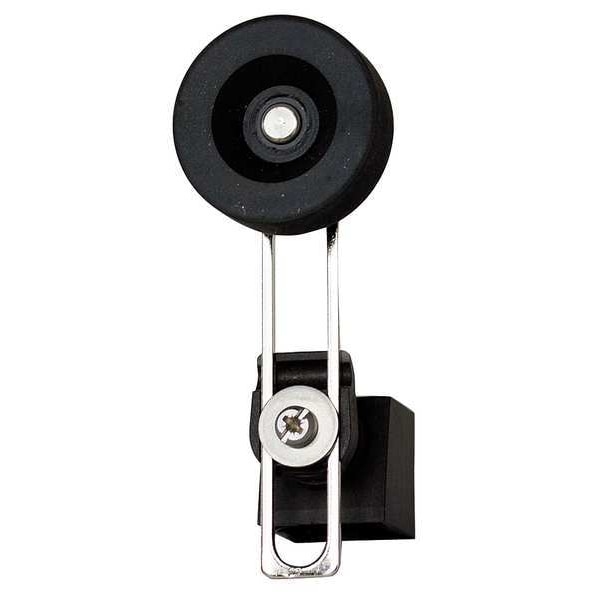

Eaton Limit Switch Head, Rotry Lvr, Side, 2.54 In LS-XRLA40R - main

Limit Switch Head, Rotry Lvr, Side, 2.54 In

  • Mfr # LS-XRLA40R

  • Zoro # G6791723

product price: $67.19
/ea

Key Features

Actuator Style
Roller Lever Plunger
Actuator Location
Side
Actuator Length
2.54 in
For Use With
LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LS-XRLA40R
Zoro #
G6791723
UPC #
786685393643
Country of Origin
Germany

Dimensions

Actuator Length
2.54 in
Product Length/Depth
.94 in
Product Width
.98 in
Product Height
4.41 in
Arm Length - Minimum
0.75 in
Manufacturer Warranty Length
1 yr
Overall Depth
0.94 in
Overall Width
0.98 in
Roller Diameter
1.57 in
Arm Length - Maximum
2.54 in
Overall Height
4.41 in
Roller Width
1.57 in

Details

Item
Limit Switch Head
Actuator Style
Roller Lever Plunger
Actuator Location
Side
For Use With
LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
Movement
Vertical
IP Rating
IP66, IP67
Standards
RoHS, UL Listed
Operating Temp.
-13 Degrees to 158 Degrees F
Description/Special Features
Momentary
Travel
Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees
Voltage Rating
415V AC
Operating Force
8 N
Amps
10
Certifications
UL Listed
Environmental rating
IP66, IP67
Switch type
Operator only
Operating temperature - min
-13°F
Type
LS-Titan
Operating temperature - max
158°F
Product Name
Eaton LS-Titan miniature DIN limit switch
Total Travel
65 Degrees
Roller Position
Side
Directional Movement
CCW/CW
Pretravel
55 Degrees
Overtravel
55 Degrees
NEMA Enclosure Rating
1, 12, 13, 2, 4, 4X, 6
Differential Travel
65 Degrees
Operating Torque
8.88 in-lb
Arm Adjustability
Adjustable
Arm Material
Metal
Series
LS
Compatible with Manufacturer Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Operating Temperature - Maximum
158 Degrees F
Compatible with Series
LS-Titan
Includes Actuator
Actuator Included
Operating Temperature - Minimum
-13 Degrees F
Roller Material
Rubber
Roller Adjustability
Adjustable
Plunger Adjustability
Adjustable
Compatible with Brand
Eaton
Action
Momentary
Reset Travel
5 Degrees
Compatible Manufacturer Part Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Manufacturer Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible with Manufacturer Model No.
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible with Mfr. Model No.
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
For Use with Mfr Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
For Use With Mfr. Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Pump Manufacturer Part Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Mfr. Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A

Description

Limit Switch Head, Actuator Style Roller Lever Plunger, Actuator Location Side, Actuator Length 2.54 in, Contact Form Not Applicable, Amps 10, Voltage Rating 415V AC, Travel Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees , Movement Vertical, Operating Force 8 N, Operating Temp. -13 Degrees to 158 Degrees F, NEMA Rating 1, 12, 13, 2, 4, 4X, 6, IP Rating IP66, IP67, Standards RoHS, UL Listed
