Shop EATON

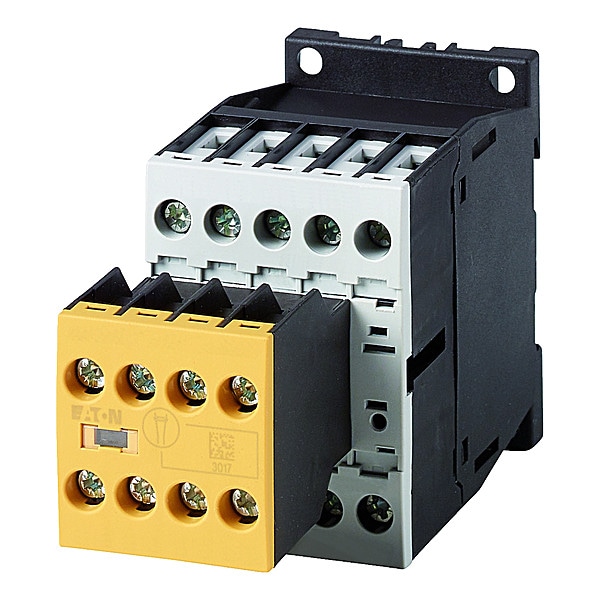

MagContactor, NonReversing, 110-120VAC

  • Mfr # XTSE007B23A

  • Zoro # G510042429

product price:  $355.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Series
XT
Auxiliary Contact Form
2NO/3NC
Standards
CSA, UL Listed
Maximum Voltage Rating
600V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XTSE007B23A
Zoro #
G510042429
UPC #
786689042882
Country of Origin
Germany

Dimensions

Overall Width
3.1 in
Overall Depth
5.5 in
Frame Size
B
Overall Height
2 in
Product Width
7.874 cm
Product Height
5.08 cm
Product Length/Depth
13.97 cm

Details

Item
Magnetic Contactor
Number of Poles
3
Series
XT
Auxiliary Contact Form
2NO/3NC
Standards
CSA, UL Listed
Maximum Voltage Rating
600V AC
Full Load Current - Resistive
7 A
Frequency
50/60 Hz
Terminal Connection Type
Screw Clamp Terminals
Embedded Surge Suppressor
No
Contactor Style
IEC
Number of Normally Closed Main Contacts
3
Number of Normally Open Main Contacts
2
Reversing Capability
Non-Reversing
Number of Auxillary Contacts
5
Phase
Three
Horsepower @ Three Phase - 480V AC
3 hp
Horsepower @ Three Phase - 240V AC
2 hp
Horsepower @ Three Phase - 600V AC
5 hp
Horsepower @ Single Phase - 240V AC
Not Rated
Includes Auxiliary Contacts
Yes
Coil Voltage
110-120V AC
Mounting Style
Bolt-on, Panel Mount, DIN Rail
Full Load Current - Inductive
7 A
Horsepower @ Single Phase - 120V AC
Not Rated
Horsepower @ Three Phase - 208V AC
1 1/2 hp
NEMA Enclosure Rating
No Enclosure
Contact Configuration
2 NO, 3 NC
Hp Rating - Max
1.5, 2, 3, 5 hp (3PH @200/208,230/240,460/480,575/600 V)
Amperage Rating
7A
Certifications
UL Listed; CSA Certified
Frequency Rating
50-60 Hz
Frame
FVNR
Rated Operational Current
200-600 V
Product Name
Eaton XT IEC contactor

Description

Magnetic Contactor, Auxiliary Contact Form 2NO/3NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110-120V AC, Number of Poles 3, Full Load Current - Inductive 7 A, Full Load Current - Resistive 7 A, Reversing Capability Non-Reversing, Overall Height 2 in, Overall Width 3.1 in, Auxiliary Contact Module Capacity Not Applicable, Terminal Connection Type Screw Clamp Terminals, Frame Size B, Mounting Style Bolt-on, Panel Mount, DIN Rail, Series XT
