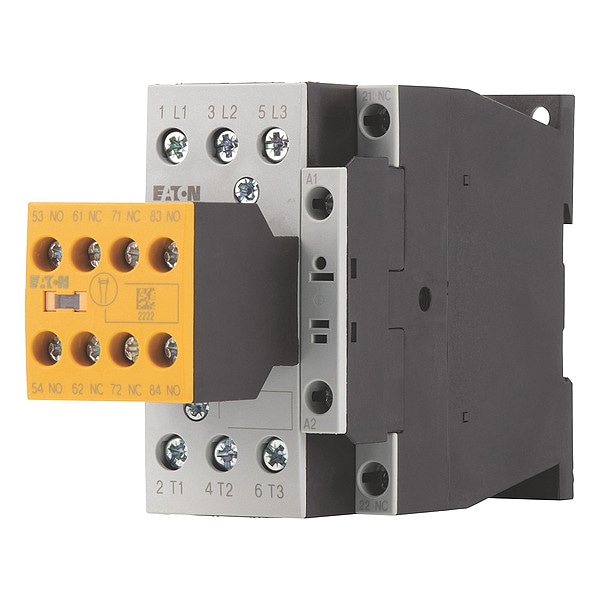

Eaton MagContactor, NonReversing, 110-120VAC XTSE032C23A - main

MagContactor, NonReversing, 110-120VAC

  • Mfr # XTSE032C23A

  • Zoro # G510042573

product price: $690.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Standards
CSA, UL Listed
Series
XT
Auxiliary Contact Form
2NO/3NC
Horsepower @ Three Phase - 208V AC
10 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XTSE032C23A
Zoro #
G510042573
UPC #
786689043087
Country of Origin
Germany

Dimensions

Overall Width
3.5 in
Overall Depth
6 in
Overall Height
1.75 in
Frame Size
C

Details

Item
Magnetic Contactor
Number of Poles
3
Standards
CSA, UL Listed
Series
XT
Auxiliary Contact Form
2NO/3NC
Horsepower @ Three Phase - 208V AC
10 hp
Horsepower @ Single Phase - 240V AC
Not Rated
Number of Normally Open Main Contacts
2
Mounting Style
Bolt-on, Panel Mount, DIN Rail
Includes Auxiliary Contacts
Yes
Contactor Style
IEC
Horsepower @ Single Phase - 120V AC
Not Rated
Full Load Current - Resistive
32 A
Embedded Surge Suppressor
No
Full Load Current - Inductive
32 A
Number of Normally Closed Main Contacts
3
Frequency
50/60 Hz
Coil Voltage
110-120V AC
NEMA Enclosure Rating
No Enclosure
Number of Auxillary Contacts
5
Horsepower @ Three Phase - 480V AC
20 hp
Phase
Three
Horsepower @ Three Phase - 600V AC
25 hp
Terminal Connection Type
Screw Clamp Terminals
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 240V AC
10 hp
Reversing Capability
Non-Reversing
Frame
FVNR
Amperage Rating
32A
Hp Rating - Max
10, 10, 20, 25 hp (3PH @200/208,230/240,460/480,575/600 V)
Certifications
UL Listed; CSA Certified
Rated Operational Current
200-600 V
Frequency Rating
50-60 Hz
Contact Configuration
2 NO, 3 NC
Product Name
Eaton XT IEC contactor

Description

Magnetic Contactor, Auxiliary Contact Form 2NO/3NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110-120V AC, Number of Poles 3, Full Load Current - Inductive 32 A, Full Load Current - Resistive 32 A, Reversing Capability Non-Reversing, Overall Height 1.75 in, Overall Width 3.5 in, Auxiliary Contact Module Capacity Not Applicable, Terminal Connection Type Screw Clamp Terminals, Frame Size C, Mounting Style Bolt-on, Panel Mount, DIN Rail, Series XT
