  13. Magnetic Contactor, Non-Reversing, 24VDC

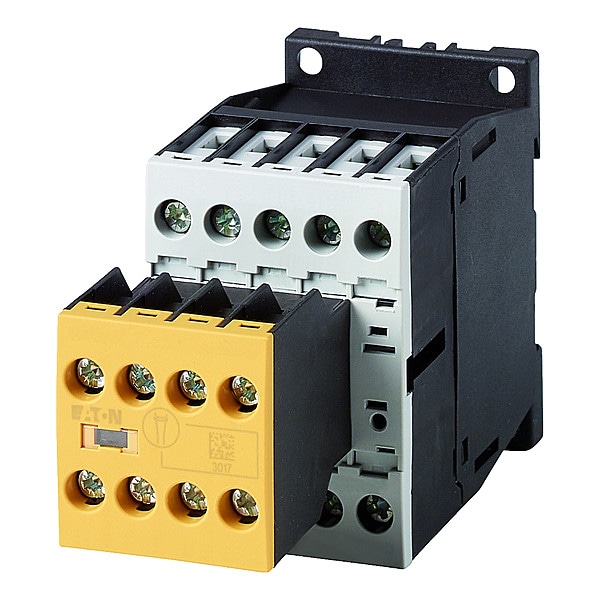

Eaton Magnetic Contactor, Non-Reversing, 24VDC XTSE009BE23TD - main

Magnetic Contactor, Non-Reversing, 24VDC

  • Mfr # XTSE009BE23TD

  • Zoro # G810042570

product price: $461.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Auxiliary Contact Form
2NO/3NC
Series
XT
Standards
CSA, UL Listed
Full Load Current - Inductive
9 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XTSE009BE23TD
Zoro #
G810042570
UPC #
786689042950
Country of Origin
Germany

Dimensions

Frame Size
BE
Overall Height
2 in
Overall Width
3 in
Overall Depth
5.5 in

Details

Item
Magnetic Contactor
Number of Poles
3
Auxiliary Contact Form
2NO/3NC
Series
XT
Standards
CSA, UL Listed
Full Load Current - Inductive
9 A
Coil Voltage
24V DC
NEMA Enclosure Rating
No Enclosure
Reversing Capability
Non-Reversing
Number of Auxillary Contacts
5
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 240V AC
3 hp
Embedded Surge Suppressor
No
Phase
Three
Full Load Current - Resistive
9 A
Horsepower @ Single Phase - 120V AC
Not Rated
Contactor Style
IEC
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Horsepower @ Single Phase - 240V AC
Not Rated
Horsepower @ Three Phase - 480V AC
5 hp
Number of Normally Open Main Contacts
2
Maximum Voltage Rating
600V AC
Mounting Style
Bolt-on, Panel Mount, DIN Rail
Terminal Connection Type
Screw Clamp Terminals
Horsepower @ Three Phase - 208V AC
3 hp
Number of Normally Closed Main Contacts
3
Amperage Rating
9A
Hp Rating - Max
3, 3, 5, 7.5 hp (3PH @200/208,230/240,460/480,575/600 V)
Rated Operational Current
200-600 V
Frame
FVNR
Contact Configuration
2 NO, 3 NC
Certifications
CSA Certified; UL Listed
Product Name
Eaton XT IEC contactor

Description

Magnetic Contactor, Auxiliary Contact Form 2NO/3NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 9 A, Full Load Current - Resistive 9 A, Reversing Capability Non-Reversing, Overall Height 2 in, Overall Width 3 in, Auxiliary Contact Module Capacity Not Applicable, Terminal Connection Type Screw Clamp Terminals, Frame Size BE, Mounting Style Bolt-on, Panel Mount, DIN Rail, Series XT
