  13. Magnetic Contactor, Non-Reversing, 24VDC

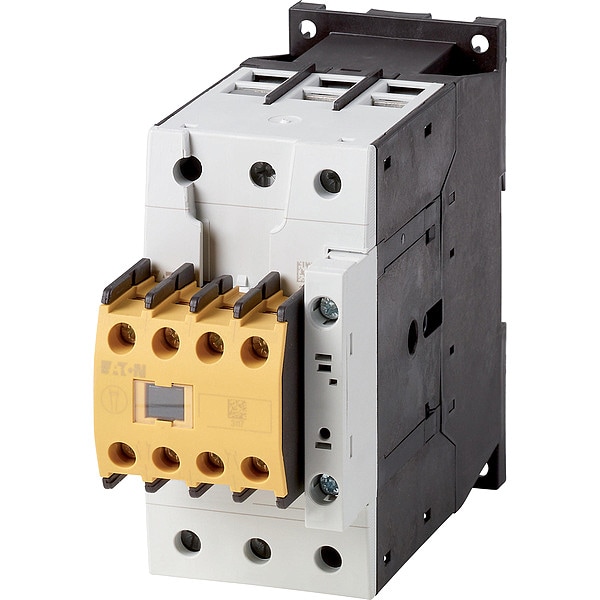

Eaton Magnetic Contactor, Non-Reversing, 24VDC XTSE065D22TD - main

Magnetic Contactor, Non-Reversing, 24VDC

  • Mfr # XTSE065D22TD

  • Zoro # G410042970

product price: $1,183.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Standards
CSA, UL Listed
Auxiliary Contact Form
2NO/2NC
Series
XT
Contactor Style
IEC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XTSE065D22TD
Zoro #
G410042970
UPC #
786689042714
Country of Origin
Germany

Dimensions

Frame Size
D
Overall Width
4.7 in
Overall Depth
2.4 in
Overall Height
2.5 in

Details

Item
Magnetic Contactor
Number of Poles
3
Standards
CSA, UL Listed
Auxiliary Contact Form
2NO/2NC
Series
XT
Contactor Style
IEC
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 600V AC
60 hp
Horsepower @ Three Phase - 480V AC
40 hp
Full Load Current - Resistive
65 A
Mounting Style
Bolt-on, Panel Mount, DIN Rail
Horsepower @ Three Phase - 208V AC
20 hp
Embedded Surge Suppressor
No
Horsepower @ Single Phase - 120V AC
Not Rated
Number of Normally Closed Main Contacts
2
Includes Auxiliary Contacts
Yes
Horsepower @ Single Phase - 240V AC
Not Rated
NEMA Enclosure Rating
No Enclosure
Full Load Current - Inductive
65 A
Coil Voltage
24V DC
Horsepower @ Three Phase - 240V AC
25 hp
Number of Normally Open Main Contacts
2
Reversing Capability
Non-Reversing
Phase
Three
Terminal Connection Type
Screw Clamp Terminals
Number of Auxillary Contacts
4
Rated Operational Current
200-600 V
Contact Configuration
2 NO, 2 NC
Frame
FVNR
Hp Rating - Max
20, 25, 40, 60 hp (3PH @200/208,230/240,460/480,575,600 V)
Amperage Rating
60A
Certifications
CSA Certified; UL Listed
Product Name
Eaton XT IEC contactor

Description

Magnetic Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 65 A, Full Load Current - Resistive 65 A, Reversing Capability Non-Reversing, Overall Height 2.5 in, Overall Width 4.7 in, Auxiliary Contact Module Capacity Not Applicable, Terminal Connection Type Screw Clamp Terminals, Frame Size D, Mounting Style Bolt-on, Panel Mount, DIN Rail, Series XT
