Eaton

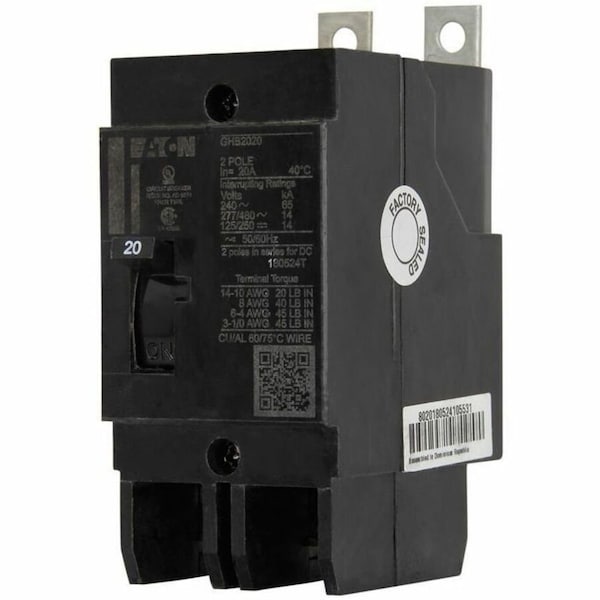

Miniature Circuit Breaker, GHB Series, 20A, 2 Pole, 277/480V AC, 14kA at 277/480V AC
Mfr # GHB2020
Zoro # G3783361
CAD Available
product price: $239.99
/ea
Free Shipping & Returns
$239.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Series GHB
- Number of Poles 2
- AC Voltage Rating 277/480V AC
- Circuit Breaker Type Standard
- Phase 1
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Eaton
- MFR # GHB2020
- Zoro # G3783361
- UPC # 786679911204
- Country of Origin Dominican Republic
- Category Circuit Breakers
Dimensions
| Frame Size | 100/GHB |
| Width | 2 in |
| Depth | 2.63 in |
| Height | 4 in |
| Max. Wire Size | 10 AWG |
| Min. Wire Size | 14 AWG |
| Length (Straight Wireway) | 4.0 in |
| Length | 4 in |
Description
Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 277/480V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 125/250V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series 1A, Phase Single, Series GHB, Max. AIR Rating 14kA at 277/480V AC, For Use With Eaton Powerline Panelboards, Terminal Connection Screw Clamp, Frame Size 100/GHB, Length 4 in, Width 2 in, Depth 2.63 in, Min. Operating Temp. -4 Degrees F
