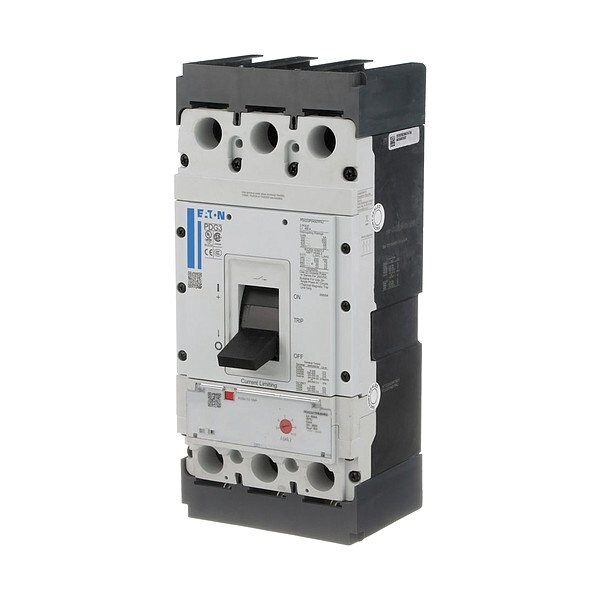

Molded Case Circuit Breaker, 600V AC
Mfr # PDG33M0350TFAJ
Zoro # G622580185
product price: $4,117.99
/ea
Free Shipping & Returns
Key Features
AC Voltage Rating
600V AC
Series
Power Defense
Depth
109.1 mm
Frame Size
Frame 3
Terminal Connection
Standard Line/Load
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PDG33M0350TFAJ
Zoro #
G622580185
UPC #
786679534557
Country of Origin
Dominican Republic
Dimensions
Depth
109.1 mm
Frame Size
Frame 3
Height
257.1 mm
Width
138.9 mm
Details
AC Voltage Rating
600V AC
Series
Power Defense
Terminal Connection
Standard Line/Load
Trip Type
Fixed Thermal, Adjustable Magnetic
Circuit Breaker Type
Molded Case
Max. AIR Rating
65kA at 480V AC
Item
Molded Case Circuit Breaker
Number of Poles
3
Amps
350A
Instantaneous Trip
Adjustable
Description
Molded Case Circuit Breaker, 350 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65kA at 480V AC, For Use With Motor Starters, High Amp Trip Setting 350 A, Low Amp Trip Setting 350 A, Circuit Breaker Type Standard, Number of Poles 3, Terminal Connection Line/Load Lug, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 3, Height 10.12 in, Width 5.47 in, Depth 4.3 in, Max. Operating Temp. 158 Degrees F
