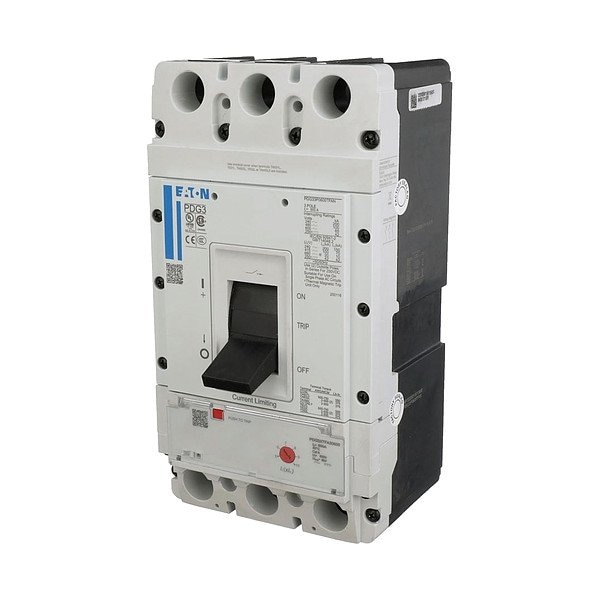

Molded Case Circuit Breaker, 600V AC
Mfr # PDG33M0500TFAJ
Zoro # G422580538
product price:Â $4,646.99
/ea
Free Shipping & Returns
Key Features
Series
Power Defense
Amps
500A
Number of Poles
3
AC Voltage Rating
600V AC
Circuit Breaker Type
Molded Case
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PDG33M0500TFAJ
- Zoro #
- G422580538
- UPC #
- 786679503287
- Country of Origin
- Dominican Republic
Dimensions
- Frame Size
- Frame 3
- Width
- 138.9 mm
- Depth
- 109.1 mm
- Height
- 182.88 mm
Details
- Item
- Molded Case Circuit Breaker
- Series
- Power Defense
- Amps
- 500A
- Number of Poles
- 3
- AC Voltage Rating
- 600V AC
- Circuit Breaker Type
- Molded Case
- Max. AIR Rating
- 65kA at 480V AC
- Trip Type
- Thermomagnetic
- Instantaneous Trip
- Adjustable
- Terminal Connection
- Standard Line/Load
- Low Amp Trip Setting
- 500 A
- For Use With
- Motor Starters
- Max. Operating Temp.
- 158 Degrees F
- High Amp Trip Setting
- 500 A
- Phase
- Three
- Standards
- CCC Marked, CSA Certified, IEC 60947-2, RoHS Compliant, UL 489
- Phase Connection
- ABC
Description
Molded Case Circuit Breaker, 500 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65kA at 480V AC, For Use With Motor Starters, High Amp Trip Setting 500 A, Low Amp Trip Setting 500 A, Circuit Breaker Type Standard, Number of Poles 3, Terminal Connection Line/Load Lug, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 3, Height 7.2 in, Width 5.47 in, Depth 4.29 in, Max. Operating Temp. 158 Degrees F, Standards CCC Marked, CSA Certified, IEC 60947-2, RoHS Compliant, UL 489
