  13. NEMA Fusible Str, Size 3,120V Coil, 3R Enc

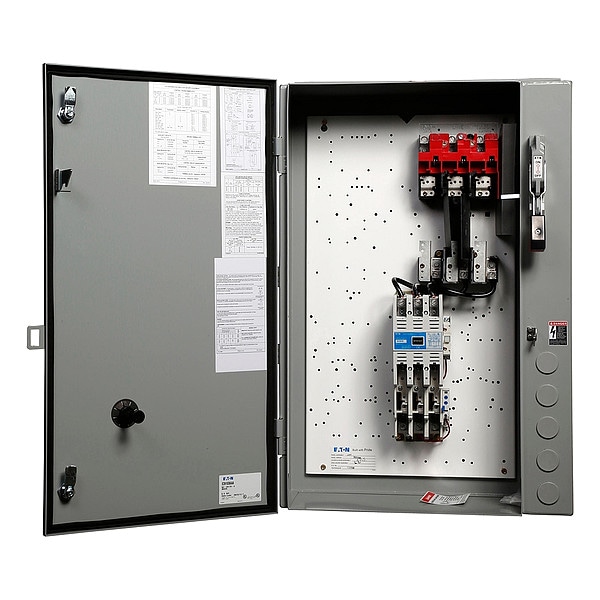

Eaton NEMA Fusible Str, Size 3,120V Coil, 3R Enc ECN1632AAF-R63/E - main

NEMA Fusible Str, Size 3,120V Coil, 3R Enc

  • Mfr # ECN1632AAF-R63/E

  • Zoro # G6367191

product price: $4,250.99
/ea
Free Shipping & Returns

Key Features

NEMA Size
3
Amps AC
90
Max. Motor Voltage
250V AC
Coil Volts
110/120V AC
Fuse Clip Type
RK5-250V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ECN1632AAF-R63/E
Zoro #
G6367191
UPC #
-
Country of Origin
United States

Dimensions

NEMA Size
3
Overall Width
22.7 in
Overall Depth
34.4 in
Overall Height
13.2 in

Details

Item
NEMA Combination Starter
Amps AC
90
Max. Motor Voltage
250V AC
Coil Volts
110/120V AC
Fuse Clip Type
RK5-250V AC
Enclosure NEMA Rating
3R
Auxiliary Contact Form
1NO
Short Circuit Protection
Fusible Disconnect
Overload Relay Amp Setting
20 to 100A
Operator
No
Trip Class
10/20/30
Pilot Light
No
Control Transformer
No
HP @ 3 Phase - 480V
50 hp
HP @ 3 Phase - 240V
30 hp
Hz
60
Standards
UL E1491
Number of Poles
3
Number of Auxillary Contacts
1
NEMA Enclosure Rating
3R
Frequency
50/60 Hz
Maximum Voltage Rating
600V AC
Coil Voltage
110/120V AC
Horsepower @ Three Phase - 240V AC
30 hp
Terminal Connection Type
Screw Terminals
IP Rating
IP20
Phase
Three
Maximum Overload Relay Current Setting
100 A
Mounting Postion
Horizontal, Vertical
Includes Auxiliary Contacts
Yes
Number of Terminals
3
Current AC
90 A
Mounting Style
Through Panel
For Fuse Class
Class R
Horsepower @ Single Phase - 120V AC
Not Rated
Minimum Overload Relay Current Setting
20 A
Overload Protection Type
Electronic
Auxiliary Contact Module Capacity
4
Series
Freedom
Horsepower @ Three Phase - 208V AC
25 hp
Horsepower @ Three Phase - 600V AC
50 hp
Includes Pilot Light
No
Electrical Operating Durability
100,000
Horsepower @ Three Phase - 480V AC
50 hp
Resistance Properties
Impact Resistant, Tamper Resistant
Reversing Capability
Non-Reversing
Starter Style
NEMA
Includes Control Transformer
No
Horsepower @ Single Phase - 240V AC
Not Rated

Description

NEMA Combination Starter, Coil Voltage 110/120V AC, Current AC 90 A, Horsepower @ Three Phase - 600V AC 50 hp, Maximum Voltage Rating 600V AC, NEMA Enclosure Rating 3R, NEMA Size 3, Hazardous Location Specification Not Applicable, Starter Style NEMA, Reversing Capability Non-Reversing, Auxiliary Contact Form 1NO, Short Circuit Protection Fusible Disconnect, Includes Control Transformer No, Trip Class 10/20/30, Horsepower @ Three Phase - 208V AC 25 hp, Control Transformer Voltage Not Applicable
