Shop EATON

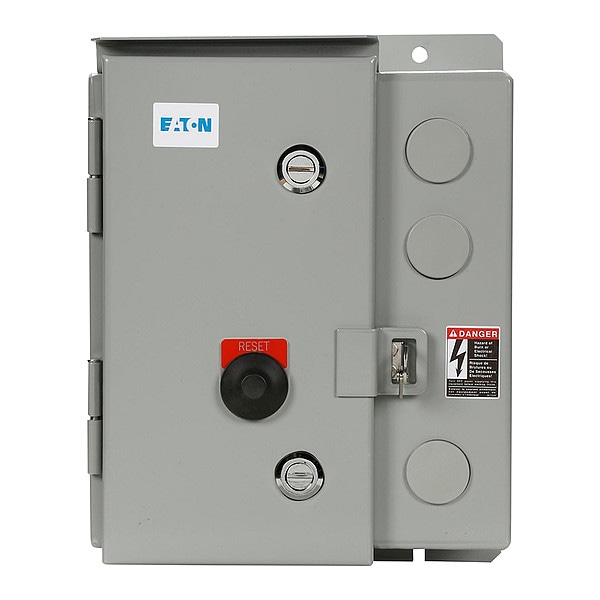

NEMA Magnetic Motor Starter, Non-Reversing, 1NC/1NO, 120V AC, 3 P

  • Mfr # ECN0502AAA-R63/C
  • Zoro # G3713595
product price:
$
902.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
110/120V AC
Number of Poles
3
Full Load Current - Inductive
20 A
Reversing Capability
Non-Reversing
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ECN0502AAA-R63/C
Zoro #
G3713595
UPC #
786685451053
Country of Origin
United States
Item
NEMA Magnetic Motor Starter
Auxiliary Contact Form
1NC/1NO
Coil Voltage
110/120V AC
Number of Poles
3
Full Load Current - Inductive
20 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
2
Standards
UL E1491
HP @ 1 Phase - 230V
2 hp
HP @ 3 Phase - 575V
5 hp
Includes
Solid State Overload Relay
Weight
15.75 lb
Horsepower @ Three Phase - 240V AC
3 hp
Trip Class
10A/10/20/30
Horsepower @ Single Phase - 240V AC
2 hp
Horsepower @ Three Phase - 600V AC
5 hp
Current AC
18 A
Horsepower @ Three Phase - 480V AC
5 hp
NEMA Enclosure Rating
3R
Includes Auxiliary Contacts
Yes
Auxiliary Contact Module Capacity
4
Phase
Three
Maximum Overload Relay Current Setting
20 A
Minimum Overload Relay Current Setting
4 A
Maximum Voltage Rating
600V AC
Starter Style
NEMA
Mounting Style
Surface
Frequency
50/60 Hz
Horsepower @ Three Phase - 208V AC
3 hp
Series
Freedom
Overload Protection Type
Electronic
Horsepower @ Single Phase - 120V AC
1 hp

Dimensions

NEMA Size
0
Overall Depth
14.6 in
Overall Width
11.6 in
Overall Height
9.5 in

Description

NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 20 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 4 A, Trip Class 10A/10/20/30, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 2, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO/1NC, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110/120V AC
