Shop EATON

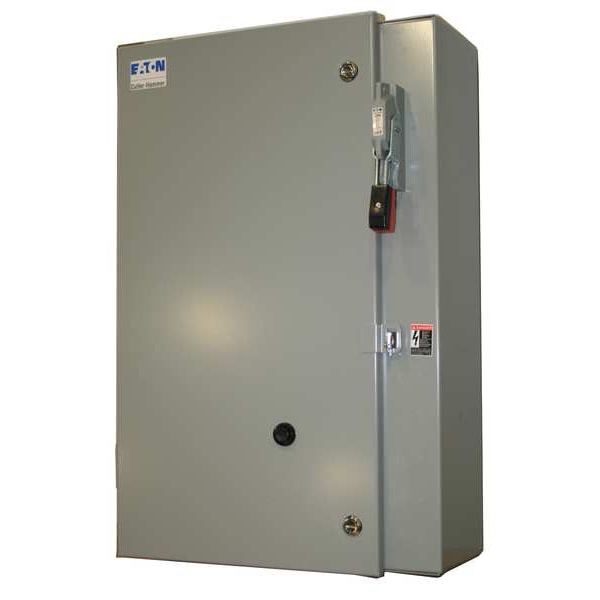

NEMA Magnetic Motor Starter, Non-Reversing, 1NC/1NO, 120V AC, 3 P

  • Mfr # ECN0531AAA-R63/E
  • Zoro # G3670685

product price:
$
1,871.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
110/120V AC
Number of Poles
3
Full Load Current - Inductive
100 A
Reversing Capability
Non-Reversing
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ECN0531AAA-R63/E
Zoro #
G3670685
UPC #
-
Country of Origin
United States
Item
NEMA Magnetic Motor Starter
Auxiliary Contact Form
1NC/1NO
Coil Voltage
110/120V AC
Number of Poles
3
Full Load Current - Inductive
100 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
2
Standards
UL E1491
Includes
Solid State Overload Relay
HP @ 1 Phase - 230V
15 hp
HP @ 3 Phase - 575V
50 hp
Horsepower @ Single Phase - 240V AC
15 hp
Mounting Style
Surface
Overload Protection Type
Electronic
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 240V AC
30 hp
Frequency
50/60 Hz
Horsepower @ Three Phase - 600V AC
50 hp
Series
Freedom
Horsepower @ Single Phase - 120V AC
7 1/2 hp
Starter Style
NEMA
Horsepower @ Three Phase - 480V AC
50 hp
Auxiliary Contact Module Capacity
4
Maximum Overload Relay Current Setting
100 A
Current AC
90 A
Includes Auxiliary Contacts
Yes
Phase
Three
NEMA Enclosure Rating
1
Minimum Overload Relay Current Setting
20 A
Horsepower @ Three Phase - 208V AC
25 hp
Trip Class
10A/10/20/30

Dimensions

NEMA Size
3
Overall Height
11 in
Overall Depth
26.5 in
Overall Width
14.2 in

Description

NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 100 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 20 A, Trip Class 10A/10/20/30, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 2, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO/1NC, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110/120V AC
