  13. NEMA Magnetic Motor Starter, Non-Reversing, 1NO, 120V AC, 3 P

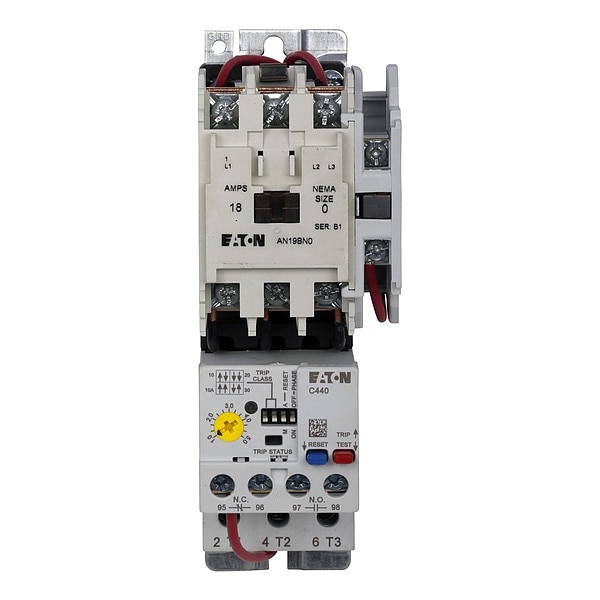

Eaton NEMA Magnetic Motor Starter, Non-Reversing, 1NO, 120V AC, 3 P AN19BN0A5E005 - main

NEMA Magnetic Motor Starter, Non-Reversing, 1NO, 120V AC, 3 P

  • Mfr # AN19BN0A5E005

  • Zoro # G3671062

product price: $492.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Number of Auxillary Contacts
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AN19BN0A5E005
Zoro #
G3671062
UPC #
786685414669
Country of Origin
Dominican Republic

Dimensions

NEMA Size
0
Overall Height
6 in
Overall Width
4 in
Overall Depth
8 in

Details

Item
NEMA Magnetic Motor Starter
Auxiliary Contact Form
1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Number of Auxillary Contacts
1
Standards
CE, CSA, UL Listed
Includes
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
HP @ 3 Phase - 575V
5 hp
HP @ 1 Phase - 230V
2 hp
Enclosure Type
Open
Weight
2.22 lb
Configuration
Non-reversing
Special Features
With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
Product Name
Eaton Freedom NEMA motor control starter
Overload Relay
C440 electronic
Mounting Style
Surface
Horsepower @ Three Phase - 208V AC
3 hp
Horsepower @ Single Phase - 240V AC
2 hp
Overload Protection Type
Electronic
Mounting Postion
Horizontal
Phase
Three
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 240V AC
3 hp
Includes Auxiliary Contacts
Yes
Current AC
18 A
Horsepower @ Single Phase - 120V AC
1 hp
Series
Freedom
Starter Style
NEMA
Frequency
50/60 Hz
Horsepower @ Three Phase - 480V AC
5 hp
Auxiliary Contact Module Capacity
6
Trip Class
10A/10/20/30
Operator
None
NEMA Enclosure Rating
No Enclosure
Minimum Overload Relay Current Setting
1 A
Horsepower @ Three Phase - 600V AC
5 hp
Maximum Overload Relay Current Setting
5:00 AM

Description

NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 5 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 1 A, Trip Class 10A/10/20/30, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Operator None, Operator Function Not Applicable, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC
