  13. NEMA Magnetic Motor Starter, Non-Reversing, 1NO, 120V AC, 3 P

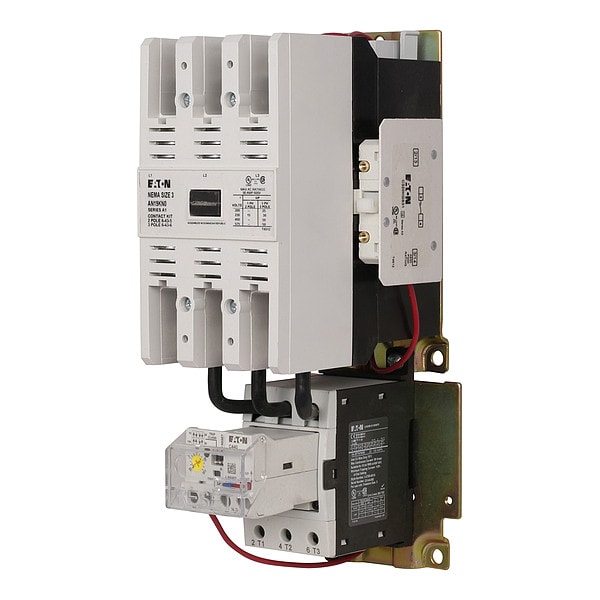

Eaton NEMA Magnetic Motor Starter, Non-Reversing, 1NO, 120V AC, 3 P AN19KN0A5E100 - main

NEMA Magnetic Motor Starter, Non-Reversing, 1NO, 120V AC, 3 P

  • Mfr # AN19KN0A5E100

  • Zoro # G3641565

product price: $1,536.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Number of Auxillary Contacts
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AN19KN0A5E100
Zoro #
G3641565
UPC #
786685415529
Country of Origin
Dominican Republic

Dimensions

NEMA Size
3
Product Length/Depth
5.92 in
Overall Height
11.4 in
Overall Width
4.09 in
Overall Depth
5.92 in

Details

Item
NEMA Magnetic Motor Starter
Auxiliary Contact Form
1NO
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Number of Auxillary Contacts
1
Standards
CE, CSA, UL Listed
Includes
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
HP @ 1 Phase - 230V
7 1/2 hp
HP @ 3 Phase - 575V
50 hp
Enclosure Type
Open
Weight
11 lb
Product Name
Eaton Freedom NEMA motor control starter
Special Features
With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
Configuration
Non-reversing
Overload Relay
C440 electronic
Minimum Overload Relay Current Setting
20 A
Frequency
50/60 Hz
Horsepower @ Single Phase - 240V AC
15 hp
Mounting Style
Surface
Horsepower @ Single Phase - 120V AC
7 1/2 hp
Maximum Overload Relay Current Setting
100 A
Overload Protection Type
Electronic
Phase
Three
Starter Style
NEMA
Trip Class
10A/10/20/30
Operator
None
Horsepower @ Three Phase - 480V AC
50 hp
Maximum Voltage Rating
600V AC
NEMA Enclosure Rating
No Enclosure
Includes Auxiliary Contacts
Yes
Auxiliary Contact Module Capacity
6
Horsepower @ Three Phase - 600V AC
50 hp
Series
Freedom
Current AC
90 A
Mounting Postion
Horizontal
Horsepower @ Three Phase - 240V AC
30 hp
Horsepower @ Three Phase - 208V AC
25 hp

Description

NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 100 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 20 A, Trip Class 10A/10/20/30, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Operator None, Operator Function Not Applicable, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC
