  15. Non-ill Mom Pb Guarded Flsh Grn, 22.5 mm, Green

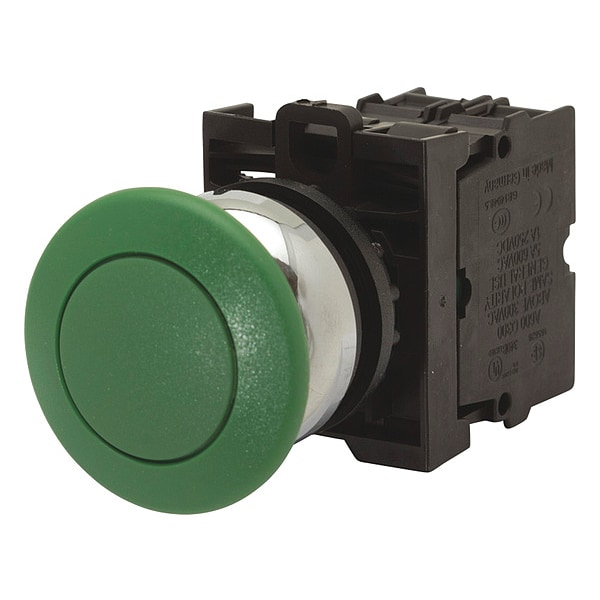

Eaton Non-ill Mom Pb Guarded Flsh Grn, 22.5 mm, Green M22-DRP-G - main

Non-ill Mom Pb Guarded Flsh Grn, 22.5 mm, Green

  • Mfr # M22-DRP-G

  • Zoro # G3633206

product price: $23.29
/ea

Key Features

Push Button Style
Mushroom Head
Action
Maintained
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22-DRP-G
Zoro #
G3633206
UPC #
786685274669
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Mushroom Head Diameter
40 mm
Size
22.5 mm
Product Width
1.17 in
Product Length/Depth
1.17 in
Product Height
.39 in
Manufacturer Warranty Length
1 yr
Overall Height
1.5 in
Overall Depth
2.5 in
Overall Width
2.5 in

Details

Item
Push Button Operator
Push Button Style
Mushroom Head
Action
Maintained
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Color
Green
Series
M22
Lamp Module Voltage
Module Not Included
NEMA Rating
4X,13
Basic Material
Plastic
Replacement Lamp
Module Not Included
Type
22.5 mm Modular
Type of Operator
35 mm Mushroom Head
Bezel
Silver
Number of Operators
1
Bezel Material
Silver
Lamp Voltage
Dependent on Module Used
IP Rating
IP67, IP69K
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Environmental rating
IP67, IP69K, NEMA 4X, NEMA 13
Compliances
CE Marked
Actuator
Flush, button
Button color
Green
Application
Pushbutton
Actuator function
Maintained
Illumination
Illuminated
Operating cycles
1 million
Special features
M22 series
Certifications
CSA Certified
Degree Of Protection
NEMA 13;NEMA 4X
Product Name
Eaton M22 modular pushbutton
Resistance Properties
Corrosion Resistant
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Number of Indicator Lights
0
Product Type
Push Button Operators
Hazardous Location Specification
Not Rated
Operator Material
Polycarbonate

Description

Mushroom Head Push Button, 22.5 mm, Maintained, Type of Operator 35 mm Mushroom Head, Basic Material Plastic, Head Material Plastic, Bezel Material Silver, Color Green, NEMA Rating 4X,13, IP Rating IP67, IP69K, Legend Not Applicable, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
