Shop EATON

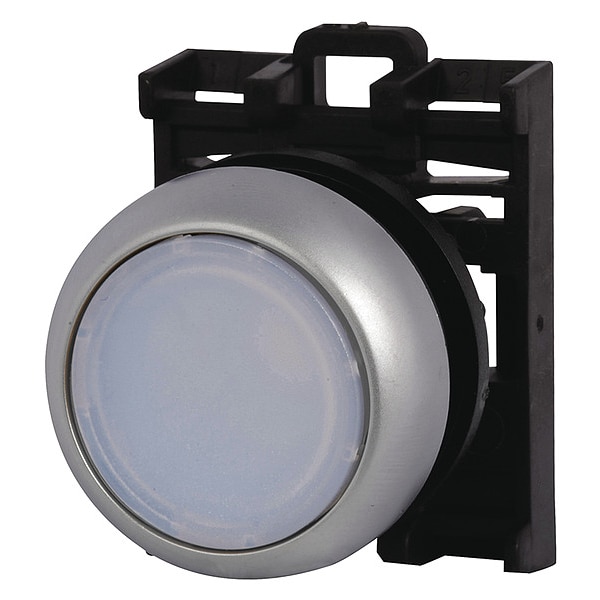

Non-ill Mom Pb Sil-bzl Flsh Blu, 22.5 mm, White

  • Mfr # M22-DRL-W

  • Zoro # G3633431

product price:  $21.99
/ea

Key Features

Push Button Style
Flush
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Panel Cutout Diameter
22 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M22-DRL-W
Zoro #
G3633431
UPC #
786685274577
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22.5 mm
Product Height
.39 in
Product Width
1.17 in
Product Length/Depth
1.17 in
Manufacturer Warranty Length
1 yr
Overall Depth
1.17 in
Overall Width
1.17 in
Overall Height
0.39 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Illuminated
Head Color
White
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Number of Operators
1
Bezel Material
Silver
Type
22.5 mm Modular
Lamp Type
LED
Lamp Module Voltage
Module Not Included
Replacement Lamp
Module Not Included
NEMA Rating
4X,13
Basic Material
Plastic
IP Rating
IP67, IP69K
Lamp Voltage
Dependent on Module Used
Lamp Module Type
No Lamp Module Included
Color
White
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Bezel
Silver
Series
M22
Type of Operator
Flush Button
Environmental rating
IP67, IP69K, NEMA 4X, NEMA 13
Application
Pushbutton
Certifications
CSA Certified
Actuator
Flush, button
Illumination
Illuminated
Button color
Yellow
Compliances
Bureau Veritas
Operating cycles
5 million
Actuator function
Momentary
Special features
M22 series
Product Name
Eaton M22 modular pushbutton
Product Type
Push Button Operators
Operator Material
Polycarbonate
Number of Indicator Lights
1
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Corrosion Resistant
Operating Temperature - Maximum
158 Degrees F
Hazardous Location Specification
Not Rated

Description

Flush Push Button, 22.5 mm, Maintained, Type of Operator Flush Button, Basic Material Plastic, Head Material Plastic, Bezel Material Silver, Color White, NEMA Rating 4X,13, IP Rating IP67, IP69K, Legend Not Applicable, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
