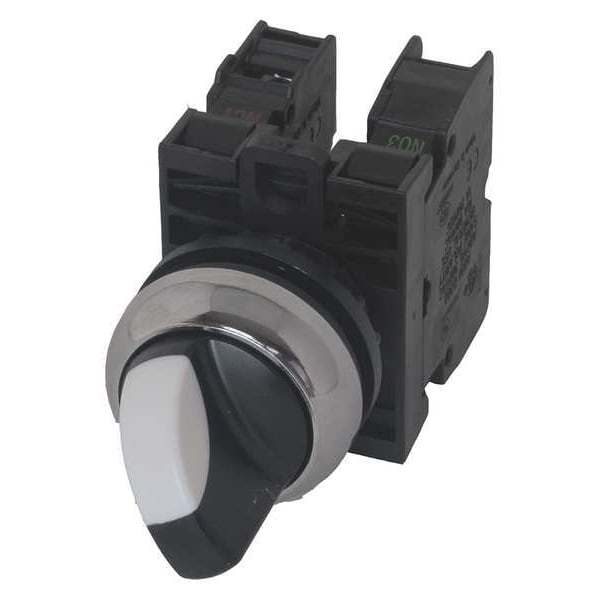

Eaton Non-Illum Selector Switch, Al, Chrome, 4A M22M-WKV-K11 - main

Non-Illum Selector Switch, Al, Chrome, 4A

  • Mfr # M22M-WKV-K11

  • Zoro # G6229307

product price: $54.29
/ea

Key Features

Size
22 mm
Basic Material
Metal
Type of Operator
Knob with 60 Degrees Rotation
Contact Form
1NO/1NC
Action
Maintained/Maintained
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22M-WKV-K11
Zoro #
G6229307
UPC #
786685899244
Country of Origin
Germany

Dimensions

Size
22 mm
Product Height
1 in
Product Length/Depth
2 in
Product Width
3 in
Overall Depth
2 in
Panel Cutout Diameter
22 mm
Manufacturer Warranty Length
1 yr
Overall Height
1 in
Overall Width
3 in

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Knob with 60 Degrees Rotation
Contact Form
1NO/1NC
Action
Maintained/Maintained
Cam
No Cam Required
Operator Head Material
Metal
Color
Black
NEMA Rating
1, 13, 2, 3, 4, 4X
Position
2
Bezel Material
Metal
Bezel Color
Chrome
Key Removal
No Key
Standards
BV, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Switch Operation @ Position B
X
Switch Operation @ Position C
No Third Position
IP Rating
IP67, IP69K
Includes
Advanced Technology and Sealing Provides Industry Leading IP66 Water Resistant Technology, 100,000 Mechanical Operations Rated Life
Switch Operation @ Position A
X
NEMA Contact Rating Designation
A600
Switch Operation @ Position D
No Fourth Position
Contact Rating
3A @ 24 DC, 6A @ 230V AC
AC Contact Rating
6 A @ 230 V
Series
M22
DC Contact Rating
3 A @ 24 V
Bezel
Metal
Contact configuration
1 NO-1 NC
Illumination
Non-illuminated
Operating mode
Maintained
Certifications
VDE
Environmental rating
IP67, IP69K (IP66 key-release)
Enclosure
NEMA 4X
Product Name
Eaton M22 modular pushbutton
Switch Function @ 2nd Position
On
Operator Head Type
Short-Handled Knob
Operator Illumination
Non-Illuminated
Contact Block Material
Plastic
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Number of Positions
2
Hazardous Location Specification
Not Rated
Switch Function @ 3rd Position
No Third Position
Switch Function @ 1st Position
On
Switch Function @ 4th Position
No Fourth Position
Operator Head Color
Black

Description

Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, 1NO/1NC Contact Form, Type of Operator Knob with 60 Degrees Rotation, Color Black, No Key Key Removal, Operator Head Material Metal, Basic Material Metal, Bezel Material Metal, Bezel Color Chrome, Contact Rating 3A @ 24 DC, 6A @ 230V AC, NEMA Contact Rating Designation AC-15, DC-13, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP67, IP69K, Cam No Cam Required, Switch Operation @ Position A X, Switch Operation @ Position B X
