  13. Non-Illum Selectr Swtch, 30mm, 2 Pos, Lever

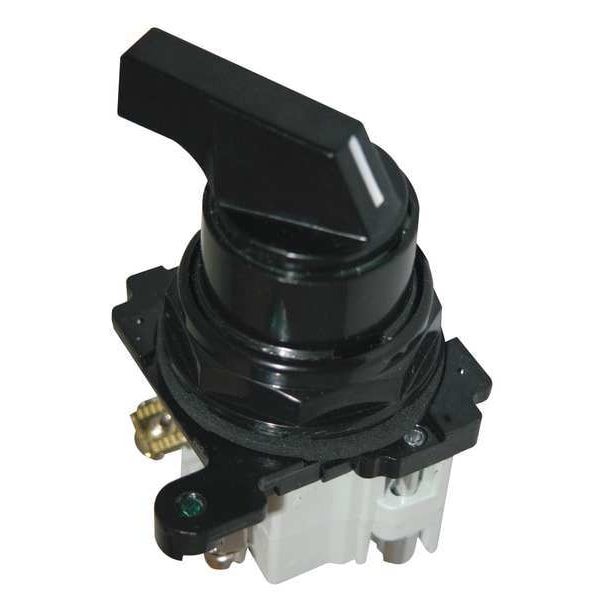

Eaton Non-Illum Selectr Swtch, 30mm, 2 Pos, Lever E34VFBL1-1X - main

Non-Illum Selectr Swtch, 30mm, 2 Pos, Lever

  • Mfr # E34VFBL1-1X

  • Zoro # G5228544

product price: $106.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Maintained
Contact Form
1NO/1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E34VFBL1-1X
Zoro #
G5228544
UPC #
786680127038
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Height
1 in
Product Length/Depth
1 in
Product Width
1 in
Overall Height
1 in
Overall Depth
1 in
Overall Width
1 in
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
1 yr

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Maintained
Contact Form
1NO/1NC
Operator Head Material
Polymer
Cam
1
Color
Black
NEMA Rating
12, 13, 3, 3R, 4, 4X
Bezel Material
Zinc
Position
2
Bezel Color
Black
Key Removal
No Key
Standards
CE, CSA, FDA 3-A, UL Listed
Switch Operation @ Position A
XO
IP Rating
IP68
Switch Operation @ Position C
No Third Position
Includes
Assembled Pushbutton
Contact Rating
10A @ 600V AC
Switch Operation @ Position D
No Fourth Position
NEMA Contact Rating Designation
A600/P600
Switch Operation @ Position B
OX
AC Contact Rating
10 A @ 600 V
Series
E34
DC Contact Rating
5 A @ 250 V
Number Of Positions
2
Cam code
Cam 1
Illumination
Non-illuminated
Compliances
CE Marked
Certifications
CSA Certified
Contact configuration
1 NO-1 NC
Rating
NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Type
30.5 mm, Corrosion Resistant
Actuator color
Black
Throw type
60°
Actuator
Knob
Product Name
Eaton E34 pushbutton
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Switch Function @ 4th Position
No Fourth Position
Contact Block Material
Metal
Operator Illumination
Non-Illuminated
Operator Head Color
Black
Operator Head Type
Short-Handled Knob
Switch Function @ 3rd Position
No Third Position
Number of Positions
2
Hazardous Location Specification
Not Rated
Switch Function @ 1st Position
On
Switch Function @ 2nd Position
On

Description

Selector Switch, 30 mm, 2 Position, Maintained/Maintained Action, 1NO/1NC Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polymer, Basic Material Metal, Bezel Material Zinc, Bezel Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP68, Cam 1, Switch Operation @ Position A XO, Switch Operation @ Position B OX, Switch Operation @ Position C No Third Position
