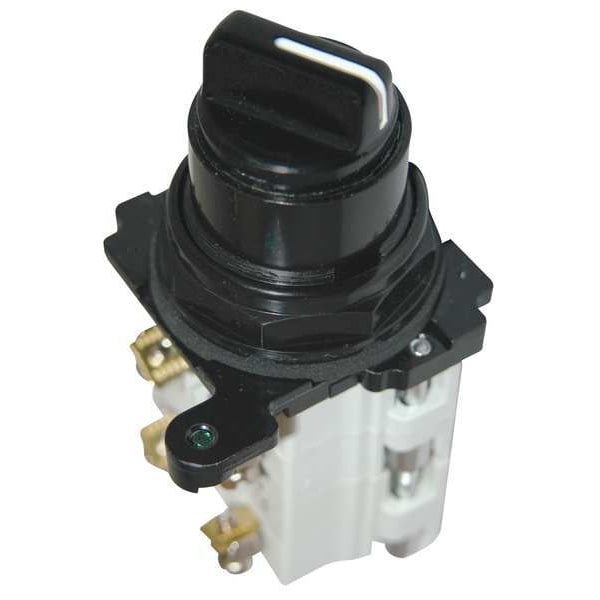

Eaton Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever E34VHBK1-23X - main

Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever

  • Mfr # E34VHBK1-23X

  • Zoro # G5228562

product price: $155.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Lever
Contact Form
2NO/2NC
Action
Maintained/Maintained/Maintained
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E34VHBK1-23X
Zoro #
G5228562
UPC #
786680128059
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Length/Depth
2.13 in
Product Height
5 in
Product Width
2.38 in
Overall Depth
2.13 in
Manufacturer Warranty Length
1 yr
Overall Width
2.38 in
Panel Cutout Diameter
30 mm
Overall Height
5 in

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Lever
Contact Form
2NO/2NC
Action
Maintained/Maintained/Maintained
Cam
3
Operator Head Material
Polymer
Color
Black
NEMA Rating
12, 13, 3, 3R, 4, 4X
Bezel Material
Metal
Position
3
Key Removal
No Key
Bezel Color
Chrome
NEMA Contact Rating Designation
A600/P600
Switch Operation @ Position C
OOX
Switch Operation @ Position B
OXO
Switch Operation @ Position A
XOO
IP Rating
IP68
Switch Operation @ Position D
No Fourth Position
Standards
CE, CSA, FDA 3-A, UL Listed
Contact Rating
10A @ 600V AC
Includes
Assembled Pushbutton
DC Contact Rating
5 A @ 250 V
AC Contact Rating
10 A @ 600 V
Series
E34
Compliances
CE Marked
Actuator color
Black
Certifications
UL Listed
Cam code
Cam 3
Bezel
Metal
Rating
NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Illumination
Non-illuminated
Actuator
Knob
Enclosure
IP65
Throw type
60°, left/center/right
Number Of Positions
3
Type
30.5 mm, Corrosion Resistant
Contact configuration
2 NO-2 NC
Product Name
Eaton E34 pushbutton
Number of Positions
3
Switch Function @ 2nd Position
On
Hazardous Location Specification
Not Rated
Switch Function @ 4th Position
No Fourth Position
Switch Function @ 3rd Position
On
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operator Head Color
Black
Operator Head Type
Short-Handled Knob
Switch Function @ 1st Position
On
Operator Illumination
Non-Illuminated
Contact Block Material
Metal

Description

Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, 2NO/2NC Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polymer, Basic Material Metal, Bezel Material Metal, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP68, Cam 3, Switch Operation @ Position A XOO, Switch Operation @ Position B OXO, Switch Operation @ Position C OOX
