  15. Non-Illuminated Push Button, 30mm, Epoxy

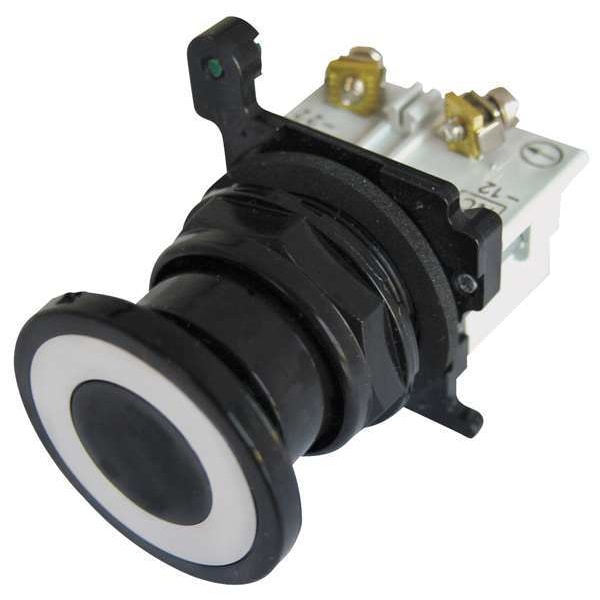

Eaton Non-Illuminated Push Button, 30mm, Epoxy E34GFBC1-3X - main

Non-Illuminated Push Button, 30mm, Epoxy

  • Mfr # E34GFBC1-3X

  • Zoro # G5219995

product price: $166.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Color
Black
Basic Material
Metal
Action
Maintained/Momentary
IP Rating
IP65
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E34GFBC1-3X
Zoro #
G5219995
UPC #
786680126680
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Manufacturer Warranty Length
1 yr
Panel Cutout Diameter
30 mm
Overall Depth
1.63 in
Overall Height
1.78 in
Mushroom Head Diameter
40 mm

Details

Item
Mushroom Head Push Button
Material
metal
Color
Black
Basic Material
Metal
Action
Maintained/Momentary
IP Rating
IP65
Features
Passed a 600 Hour Salt Spray Test
Type of Operator
40mm Mushroom Head
Head Material
Epoxy Coated Metal
Contact Rating
10A @ 600V AC
Terminal Connection
Screw Clamp
Legend
No Legend
NEMA Rating
12, 13, 3, 3R, 4, 4X
Contact Form
1NC
Bezel
Epoxy Coated Metal Zinc Die Cast
Number of Operators
1
Standards
CE EN 60947-5-1, CE EN 60947-5-5, CSA C22.2 No.14, CSA LR68551, FDA, UL 508, UL 131568
Product Type
Push Button Operators
Bezel Material
Epoxy Coated Zinc Die Cast
Number of Indicator Lights
0
Operating Temperature - Minimum
1 Degrees F
Head Color
Black
Push Button Style
Mushroom Head
Operator Illumination
Non-Illuminated
Series
E34
Maintained Action Release
Push/Pull
Operating Temperature - Maximum
150 Degrees F
Operator Material
Metal
Mechanical Operating Durability
1.00 x 10^7
Resistance Properties
Chemical Resistant, Corrosion Resistant, Oil and Grease Resistant, Watertight
AC Contact Rating
10 A @ 600 V
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operator Voltage Rating - Maximum
120 V AC/DC
DC Contact Rating
5 A @ 250 V

Description

Mushroom Head Push Button, 30 mm, Maintained/Momentary Action, 40mm Mushroom Head Type of Operator, Head Material Epoxy Coated Metal, Contact Form 1NC, Bezel Epoxy Coated Metal Zinc Die Cast, Color Black, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend No Legend, Standards CE EN 60947-5-1, CE EN 60947-5-5, CSA C22.2 No.14, CSA LR68551, FDA, UL 508, UL 131568, Terminal Connection Screw Clamp, Features Passed a 600 Hour Salt Spray Test
