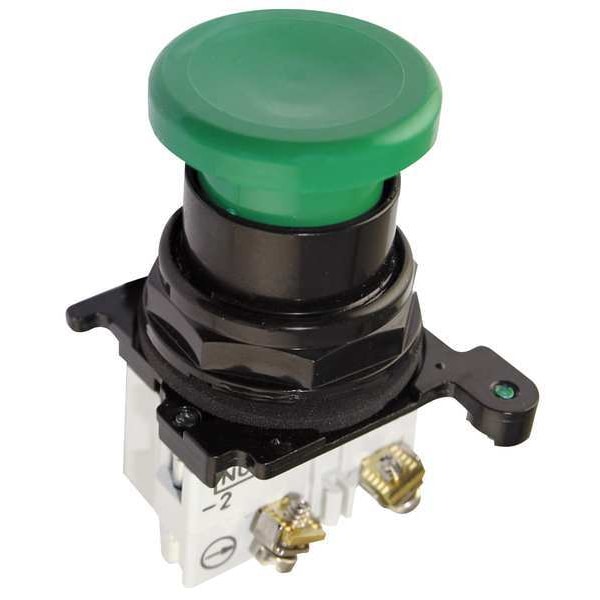

Eaton Non-Illuminated Push Button, 30mm, Epoxy E34LB3-1X - main

Non-Illuminated Push Button, 30mm, Epoxy

  • Mfr # E34LB3-1X

  • Zoro # G5227476

product price: $187.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Color
Green
Size
30 mm
Action
Momentary
Type of Operator
40mm Mushroom Head
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E34LB3-1X
Zoro #
G5227476
UPC #
786680127083
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Mushroom Head Diameter
40 mm
Overall Height
1.78 in
Manufacturer Warranty Length
1 yr
Overall Depth
1.63 in
Panel Cutout Diameter
30 mm

Details

Item
Mushroom Head Push Button
Material
metal
Color
Green
Action
Momentary
Type of Operator
40mm Mushroom Head
NEMA Rating
12, 13, 3, 3R, 4, 4X
Legend
No Legend
Terminal Connection
Screw Clamp
Head Material
Epoxy Coated Metal
Standards
CE EN 60947-5-1, CE EN 60947-5-5, CSA C22.2 No.14, CSA LR68551, FDA, UL 508, UL 131568
Contact Form
1NO/1NC
Number of Operators
1
Contact Rating
10A @ 600V AC
Basic Material
Metal
Bezel
Epoxy Coated Metal Zinc Die Cast
IP Rating
IP65
Features
Passed a 600 Hour Salt Spray Test
Product Type
Push Button Operators
Bezel Material
Epoxy Coated Zinc Die Cast
Operator Material
Metal
Operator Illumination
Non-Illuminated
Head Color
Green
Operating Temperature - Minimum
1 Degrees F
Mechanical Operating Durability
1.00 x 10^7
Resistance Properties
Chemical Resistant, Corrosion Resistant, Oil and Grease Resistant, Watertight
Operator Voltage Rating - Maximum
120 V AC/DC
DC Contact Rating
5 A @ 250 V
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Number of Indicator Lights
0
Push Button Style
Mushroom Head
Operating Temperature - Maximum
150 Degrees F
Series
E34
AC Contact Rating
10 A @ 600 V

Description

Mushroom Head Push Button, 30 mm, Momentary Action, 40mm Mushroom Head Type of Operator, Head Material Epoxy Coated Metal, Contact Form 1NO/1NC, Bezel Epoxy Coated Metal Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend No Legend, Standards CE EN 60947-5-1, CE EN 60947-5-5, CSA C22.2 No.14, CSA LR68551, FDA, UL 508, UL 131568, Terminal Connection Screw Clamp, Features Passed a 600 Hour Salt Spray Test
