  15. Non-Illuminated Push Button, 30mm, Green

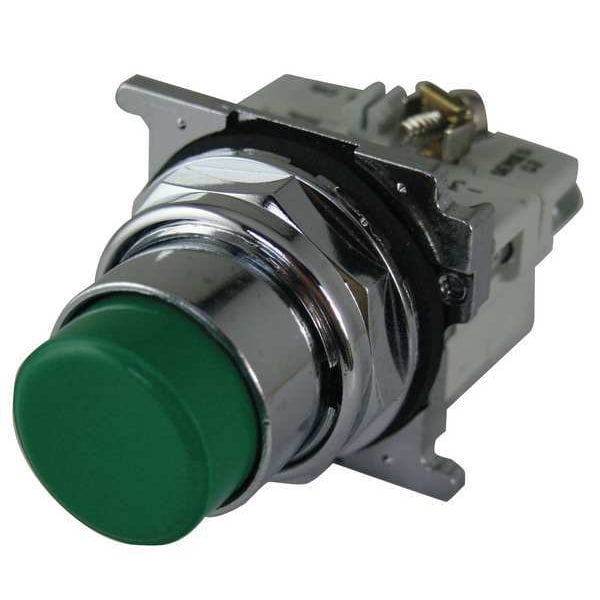

Eaton Non-Illuminated Push Button, 30mm, Green 10250T113-2 - main

Non-Illuminated Push Button, 30mm, Green

  • Mfr # 10250T113-2

  • Zoro # G5229953

product price: $135.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Color
Green
Action
Momentary
Head Material
Metal
Bezel
Chrome Plated Zinc Die Cast
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T113-2
Zoro #
G5229953
UPC #
786680121708
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Length/Depth
1 in
Product Width
1 in
Product Height
1 in
Overall Width
1 in
Panel Cutout Diameter
30 mm
Overall Depth
1 in
Manufacturer Warranty Length
1 yr
Overall Height
1 in

Details

Item
Extended Push Button Operator
Material
metal
Color
Green
Action
Momentary
Head Material
Metal
Bezel
Chrome Plated Zinc Die Cast
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Basic Material
Metal
Contact Rating
10A @ 600V AC
IP Rating
IP65
Type of Operator
Extended Button
Legend
No Legend
Terminal Connection
Screw Clamp
Contact Form
2NO
Number of Operators
1
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Standards
CE, CSA, UL Listed
Product Type
Push Button Operators
Bezel Material
Chrome Plated Zinc Die Cast
Operating Mode
Momentary
Certifications
UL Listed
Contact configuration
2 NO
Rating
NEMA 3
Series
10250T
Mounting method
Extended
Illumination
Non-illuminated
Compliances
CE Marked
Actuator color
Green
Product Name
Eaton 10250T pushbutton
Operator Illumination
Non-Illuminated
Operator Material
Metal
AC Contact Rating
10 A @ 600 V
Operating Temperature - Minimum
1 Degrees F
Number of Indicator Lights
0
Mechanical Operating Durability
1.00 x 10^7
Operating Temperature - Maximum
150 Degrees F
Head Color
Green
Operator Voltage Rating - Maximum
120 V AC/DC
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
DC Contact Rating
5 A @ 250 V
Resistance Properties
Oil and Grease Resistant, Watertight
Push Button Style
Extended

Description

Extended Push Button Operator, 30 mm, Momentary Action, Extended Button Type of Operator, Head Material Metal, Contact Form 2NO, Bezel Chrome Plated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, IP Rating IP65, Legend No Legend, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs, Material Metal
