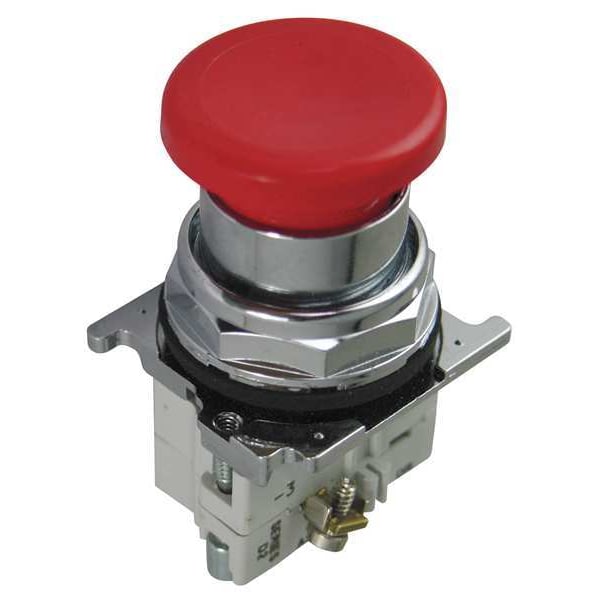

Eaton Non-Illuminated Push Button, 30mm, Metal 10250T26R - main

Non-Illuminated Push Button, 30mm, Metal

  • Mfr # 10250T26R

  • Zoro # G5229743

product price: $194.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Color
Red
Action
Momentary
Features
Compression Sealing Gasket, Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Basic Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T26R
Zoro #
G5229743
UPC #
786680122774
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Length/Depth
3.5 in
Product Width
2.4 in
Product Height
2.1 in
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
1 yr
Overall Width
2.4 in
Overall Depth
3.5 in
Overall Height
2.1 in
Mushroom Head Diameter
40 mm

Details

Item
Mushroom Head Push Button
Material
metal
Color
Red
Action
Momentary
Features
Compression Sealing Gasket, Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Basic Material
Metal
Type of Operator
40mm Mushroom Head
Number of Operators
1
Contact Form
1NC
Head Material
Metal
NEMA Rating
12, 13, 3, 3R, 4, 4X
Terminal Connection
Screw Clamp
IP Rating
IP65
Contact Rating
10A @ 600V AC
Bezel
Chrome Plated Zinc Die Cast
Standards
CE, CSA, UL Listed
Legend
No Legend
Product Type
Push Button Operators
Type
Pushbutton
Bezel Material
Chrome Plated Zinc Die Cast
Degree of protection
NEMA 3
Certifications
CSA Certified
Illumination
Non-illuminated
Operating Mode
Momentary
Rating
NEMA 4X
Series
10250T
Bus material
Zinc die cast
Compliances
CE Marked
Actuator material
Plastic
Contact configuration
1 NC
Actuator
Mushroom
Actuator color
Blue
Product Name
Eaton 10250T pushbutton
Resistance Properties
Oil and Grease Resistant
Mechanical Operating Durability
1.00 x 10^7
Operator Voltage Rating - Maximum
120 V AC/DC
Number of Indicator Lights
0
Operator Material
Metal
Push Button Style
Mushroom Head
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D
Operating Temperature - Minimum
1 Degrees F
Operating Temperature - Maximum
150 Degrees F
DC Contact Rating
5 A @ 250 V
AC Contact Rating
10 A @ 600 V
Operator Illumination
Non-Illuminated
Head Color
Red
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X

Description

Mushroom Head Push Button, 30 mm, Momentary Action, 40mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend No Legend, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Compression Sealing Gasket, Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
