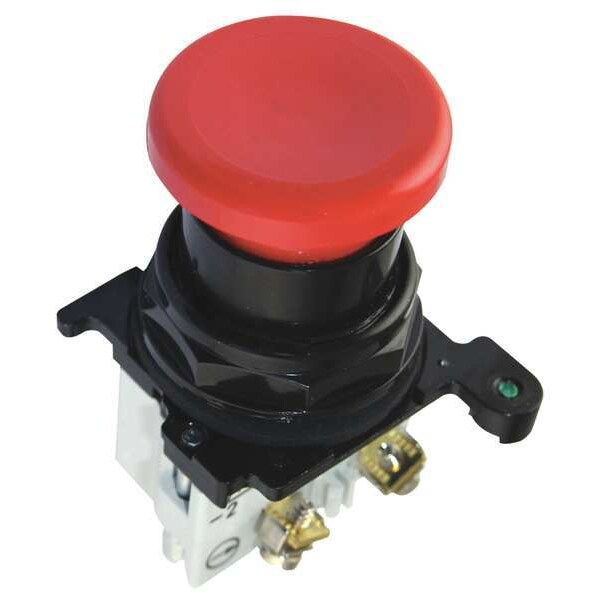

Eaton Non-Illuminated Push Button, Epoxy, Red E34LB2-1X - main

Non-Illuminated Push Button, Epoxy, Red

  • Mfr # E34LB2-1X

  • Zoro # G5219986

product price: $130.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Color
Red
Size
30 mm
Bezel
Epoxy Coated Metal Zinc Die Cast
Legend
No Legend
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E34LB2-1X
Zoro #
G5219986
UPC #
786680121272
Country of Origin
United States

Dimensions

Size
30 mm
Product Diameter
1.5 in
Product Height
1 in
Product Length/Depth
1 in
Product Width
1 in
Overall Depth
1 in
Manufacturer Warranty Length
1 yr
Overall Height
1 in
Overall Width
1 in
Panel Cutout Diameter
30 mm
Mushroom Head Diameter
40 mm

Details

Item
Mushroom Head Push Button
Material
metal
Color
Red
Bezel
Epoxy Coated Metal Zinc Die Cast
Legend
No Legend
Features
Factory Assembled
Type of Operator
40mm Mushroom Head
Head Material
Epoxy Coated Metal
Action
Momentary
Terminal Connection
Screw Clamp
Number of Operators
1
IP Rating
IP65
Contact Form
1NO/1NC
Basic Material
Metal
NEMA Rating
12, 13, 3, 3R, 4, 4X
Contact Rating
10A @ 600V AC
Standards
CE, CSA, FDA 3-A, UL 505, UL Listed
Product Type
Push Button Operators
Bezel Material
Epoxy Coated Zinc Die Cast
Type
Pushbutton
Compliances
CE Marked
Contact configuration
1 NO-1 NC
Actuator color
Red
Actuator
Mushroom
Rating
NEMA 12
Special Features
Factory Assembled
Series
E34
Certifications
CSA Certified
Actuator material
Plastic
Degree of protection
NEMA 3R
Operating Mode
Momentary
Illumination
Non-illuminated
Product Name
Eaton E34 pushbutton
Mechanical Operating Durability
1.00 x 10^7
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
AC Contact Rating
10 A @ 600 V
Number of Indicator Lights
0
Operator Voltage Rating - Maximum
120 V AC/DC
Operator Material
Metal
Operating Temperature - Maximum
150 Degrees F
Head Color
Red
Operator Illumination
Non-Illuminated
Operating Temperature - Minimum
1 Degrees F
Hazardous Location Specification
Class I, Div 2, Group B, C, D
Push Button Style
Mushroom Head
DC Contact Rating
5 A @ 250 V
Resistance Properties
Corrosion Resistant
Maintained Action Release
Push/Pull

Description

Mushroom Head Push Button, 30 mm, Momentary Action, 40mm Mushroom Head Type of Operator, Head Material Epoxy Coated Metal, Contact Form 1NO/1NC, Bezel Epoxy Coated Metal Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend No Legend, Standards CE, CSA, FDA 3-A, UL 505, UL Listed, Terminal Connection Screw Clamp, Features Factory Assembled, Material Metal
